| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

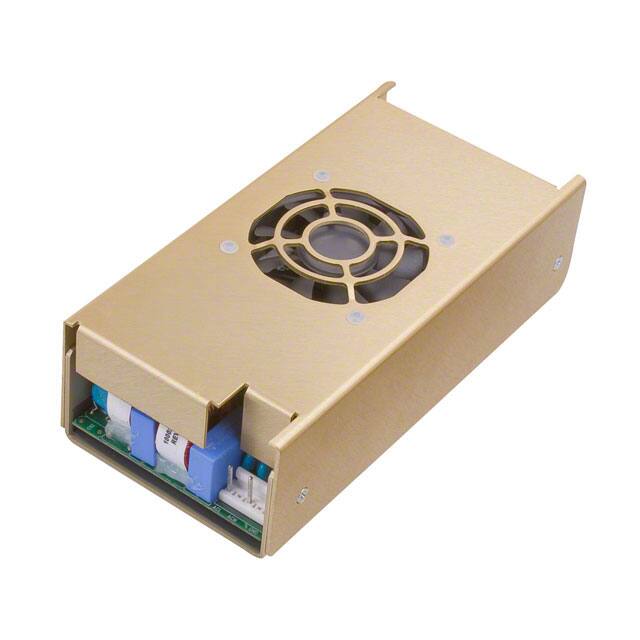

The XP Power MFA420PS12-STF is an enclosed AC DC converter designed for ITE (Commercial) applications. It delivers up to 420W of power with a 12V main output and a 35A current rating.
This converter operates across a wide input voltage range of 85-264 VAC and features an efficiency of up to 88%. The operating temperature range is -10°C to 70°C with derating. Key features include adjustable output, hot-swappable capability, load sharing, a standby output of 5V/0.3A, and a fan output of 12V/1A.
With a compact footprint of 172.7mm x 84.5mm x 52.8mm, it offers high power density. The unit is designed for chassis mounting and includes safety features such as 3kV isolation voltage and compliance with standard 62368-1.
Additional features include active current sharing, remote on/off control, and AC/DC OK signals, making it suitable for demanding system integrations.
The main output voltage (V1) is 12 VDC.
The maximum output current is 35 A.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 172.7mm in length, 84.5mm in width, and 52.8mm in height.
Yes, it has a standby output of 5 V at 0.3 A.
It complies with standard 62368-1 and has CB, CE approval.
