| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

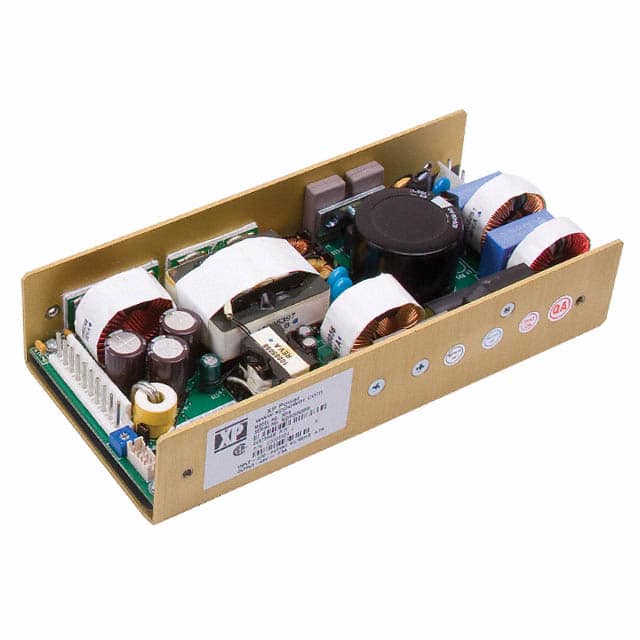

The XP Power MFA350PS48 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers up to 350W of power with a 48V DC output voltage.
Key electrical specifications include a universal input voltage range of 85-264 VAC and an efficiency of up to 88% at full load. The converter features a power factor greater than 0.9 and provides a 5V standby output and a 12V fan output. Protection features include overvoltage, overload, and short circuit protection.
With a compact footprint of 6.80 x 3.20 inches and a height of 1.50 inches, it achieves a power density of 11.1 W/in³. The operating temperature range is -10°C to 70°C with derating. Mounting is via chassis mount.
This series is designed for integration into systems demanding higher power from AC-DC units in industry-standard formats, supporting active current sharing and remote on/off functionality.
The main output voltage (V1) for the MFA350PS48 is 48 VDC.
The maximum power output is 350W, with 364W available with forced air.
The operating temperature range is -10°C to 70°C, with derating required at higher temperatures.
The efficiency is up to 88% at full load.
The dimensions are 172.7mm (6.80") in length, 81.3mm (3.20") in width, and 38.1mm (1.50") in height.
Yes, it has a 5 V, 0.3 A standby output.
Yes, it includes a 12 V, 1 A output for powering fans.
