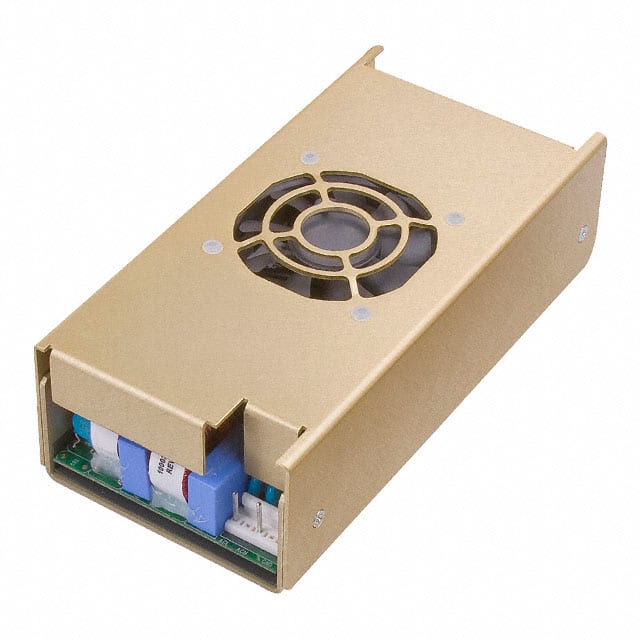

The XP Power MFA350PS12-STF is a high-density AC/DC power supply designed for demanding applications. It delivers a main output of 12VDC with a maximum current of 29A, providing up to 350W of power, or 361W with forced air.
This enclosed converter operates across a wide universal AC input range (85-264 VAC) and features a power factor greater than 0.9. It includes a 5V standby output and a 12V fan output, along with features like active current sharing and remote on/off control. The operating temperature range is -10°C to 70°C with derating.
Designed for easy integration, the MFA350PS12-STF utilizes a chassis mount and has dimensions of 172.7mm x 84.5mm x 52.8mm. It meets safety standards including 62368-1 and carries CB and CE approvals, making it suitable for ITE (Commercial) applications.
The main output voltage (V1) is 12 VDC.
The maximum output current for the 12V output (V1) is 29 A.
The maximum power output is 350W, or 361W with forced air.
The operating temperature range is -10°C to 70°C, with derating required at higher temperatures.
This unit is designed for chassis mounting.
Yes, it includes a 5V, 0.3A standby output.
The dimensions are 172.7mm (Length) x 84.5mm (Width) x 52.8mm (Height).
