| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diameter | |
| Lead Spacing | |
| R @ 25°C | |
| R @ Current | |
| Tolerance |

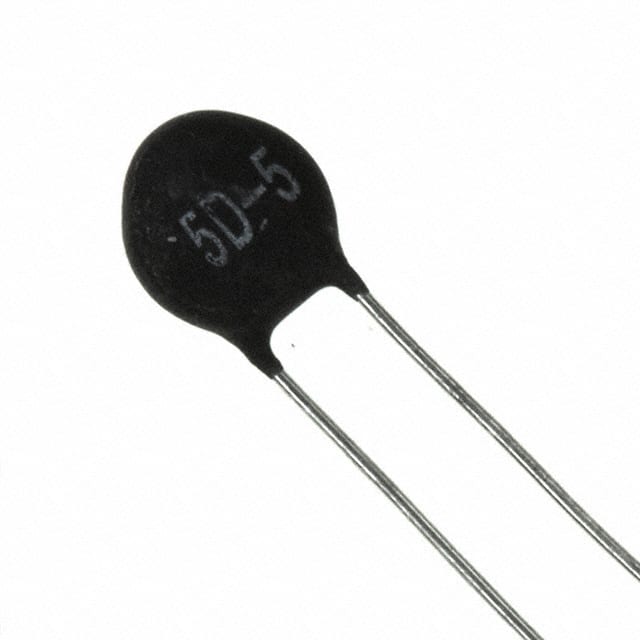

The MF72-005D5 is an inrush current limiter (ICL) from Cantherm, designed to limit inrush current in power supply and motor drive circuits. It has a cold resistance of 5Ω at 25°C with a tolerance of ±20%.
Under rated current of 1A, the resistance drops to 353mΩ, allowing efficient steady-state operation. The component is housed in a 7.00mm diameter radial leaded package with a lead spacing of 2.50mm, suitable for through-hole mounting on PCBs.
Typical applications include AC-DC converters, power supplies, and industrial equipment where inrush current limiting is required to protect rectifiers and fuses. The MF72-005D5 provides reliable performance with a compact footprint.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 5+ | $0.38 | $0.38 |
| 10+ | $0.36 | $0.36 |
| 50+ | $0.29 | $0.29 |
| 100+ | $0.27 | $0.27 |
| 250+ | $0.24 | $0.24 |
| 500+ | $0.23 | $0.23 |
| 1,000+ | $0.21 | $0.21 |
| 5,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The cold resistance is 5Ω at 25°C.
The resistance tolerance is ±20%.
The maximum steady-state current is 1A.
The resistance at 1A rated current is 353mΩ.
The body diameter is 7.00mm.
The lead spacing is 2.50mm.
