| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80,000 pcs
|
80000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,413 pcs
|
6413 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,013 pcs
|
2013 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Industrial Grade | |
| Length | |
| Max Current (Imax) | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Ratings | |
| Resistance | |
| Resistance - Min (Rmin) | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Trip Current (Itrip) | |
| Tripped Power Dissipation | |
| Type | |
| Voltage | |
| Width |

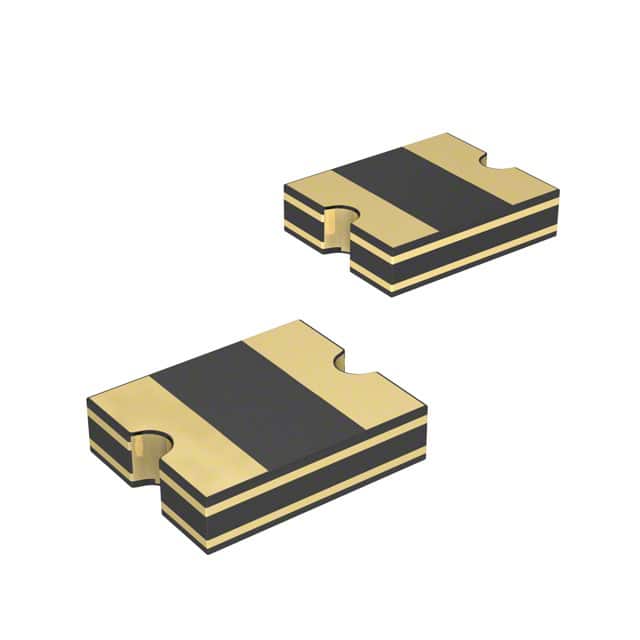

The Bourns MF-USMF005-2 is a polymeric PTC resettable fuse from the MF-USMF series, designed for overcurrent protection in a compact 1210 surface mount package. It features a maximum voltage rating of 30V and a hold current of 50mA, with a trip current of 150mA. The device offers a minimum resistance of 2.8Ω and a maximum resistance of 50Ω, with a typical time to trip of 1.5 seconds at 0.25A.
This resettable fuse is AEC-Q200 qualified, making it suitable for automotive applications. It is RoHS compliant and halogen free, and operates over a temperature range of -40°C to 85°C. The component measures 3.22mm in length, 2.58mm in width, and 0.85mm in thickness, enabling automated assembly in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.35 | $0.35 |
| 10+ | $0.31 | $0.31 |
| 50+ | $0.27 | $0.27 |
| 100+ | $0.24 | $0.24 |
| 250+ | $0.22 | $0.22 |
| 500+ | $0.20 | $0.20 |
| 1,000+ | $0.18 | $0.18 |
| 3,000+ | $0.16 | $0.16 |
| 6,000+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current (Ihold) is 50mA at 23°C.
The maximum voltage (Vmax) is 30V.
It is available in a 1210 (3225 Metric) surface mount package.
Yes, it is AEC-Q200 compliant.
The operating temperature range is -40°C to 85°C.
