| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Industrial Grade | |
| Length | |
| Max Current (Imax) | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Ratings | |
| Resistance | |
| Resistance (Maximum @ at 23 °C, measured 24 hours post reflow) | |
| SVHC Present | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Trip Current (Itrip) | |
| Tripped Power Dissipation | |
| Type | |
| Voltage | |
| Width |

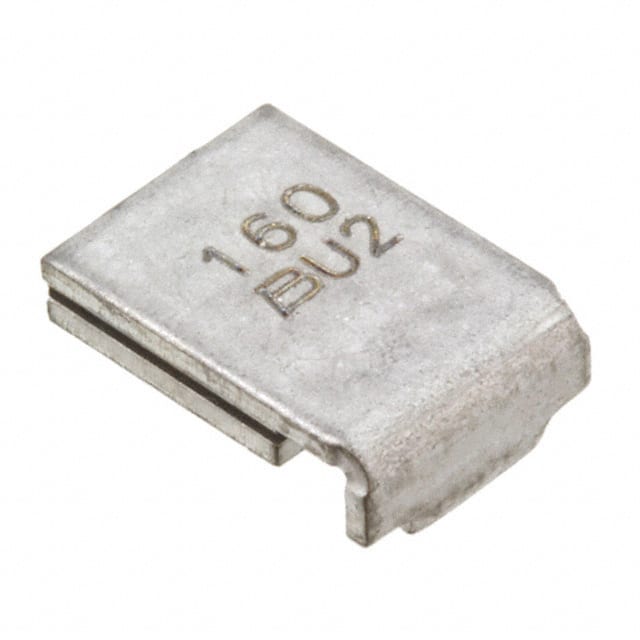

The Bourns MF-SMHT136-2 is a polymeric PTC resettable fuse designed for overcurrent protection in automotive and industrial applications. It features a hold current of 1.36 A at 23 °C and a trip current of 2.72 A, with a maximum voltage rating of 16 V and a maximum interrupt current of 100 A.
This device offers low resistance, with an initial minimum resistance of 0.085 Ω and a maximum resistance of 0.33 Ω measured 24 hours post reflow. The time to trip at 8.0 A is 10 seconds maximum, and typical tripped power dissipation is 2.36 W. It operates over a wide temperature range from -40 °C to +125 °C.
The MF-SMHT136-2 is housed in a compact 2-SMD surface mount package measuring 7.98 mm x 6.71 mm x 3.00 mm. It is RoHS compliant, halogen free, and qualified to AEC-Q200 Rev-E for automotive stress testing.
| Qty | Low | High |
|---|---|---|
| 2,000+ | $0.37 | $0.37 |
| 4,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 1.36 A at 23 °C in still air.
The maximum voltage is 16 V.
The maximum time to trip at 8.0 A is 10 seconds.
It comes in a 2-SMD surface mount package.
Yes, it is AEC-Q200 compliant.
The operating temperature range is -40°C to +125°C.
