| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| California Prop 65 | |
| Current | |
| Halogen Free | |
| Length | |
| Max Current (Imax) | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Resistance - Min (Rmin) | |
| Storage Temperature | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Trip Current (Itrip) | |
| Tripped Power Dissipation (Typical) | |
| Type | |
| Voltage | |
| Width |

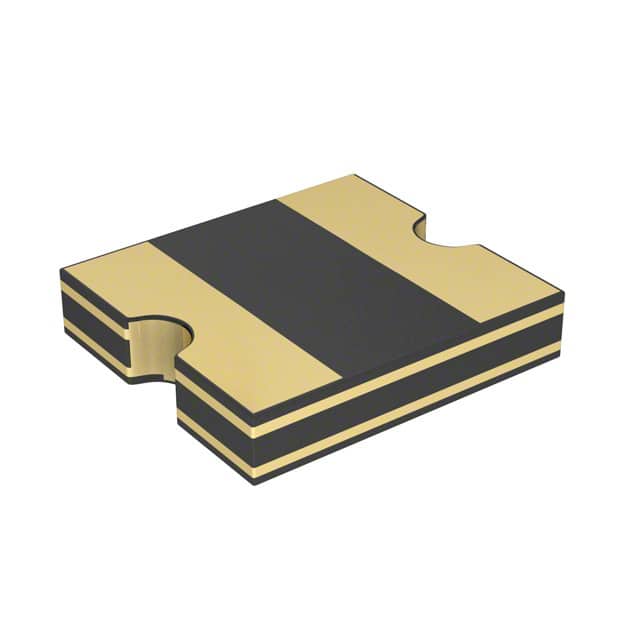

The MF-SMDF150-2 is a polymeric PTC resettable fuse from Bourns, designed for overcurrent protection in low-voltage, high-current applications. It features a hold current of 1.5A at 23°C, with a trip current of 3.0A. The device can withstand a maximum voltage of 15V and a maximum fault current of 40A.
Electrical characteristics include a minimum resistance of 50mΩ and a maximum resistance of 170mΩ at 23°C. The time to trip at 8A (Vmax, 23°C) is 800ms maximum. Typical tripped power dissipation is 1.1W. The operating temperature range is -40°C to +85°C.
Packaged in a surface mount 2018 (5045 Metric) concave package, the device measures 5.08mm in length, 4.58mm in width, and 0.85mm in thickness. It is RoHS3 compliant, lead-free, halogen-free, and carries a California Prop 65 warning for cancer and reproductive harm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.54 | $0.54 |
| 10+ | $0.41 | $0.41 |
| 50+ | $0.39 | $0.39 |
| 100+ | $0.29 | $0.29 |
| 250+ | $0.27 | $0.27 |
| 500+ | $0.25 | $0.25 |
| 1,000+ | $0.22 | $0.22 |
| 2,500+ | $0.21 | $0.21 |
| 6,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.5A at 23°C.
3.0A at 23°C.
15V.
40A.
Maximum 0.8 seconds at 8A, Vmax, 23°C.
Surface mount 2018 (5045 Metric) concave package.
Minimum 50mΩ, maximum 170mΩ at 23°C.
