| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,334 pcs
|
1334 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,334 pcs
|
1334 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Agency Approvals | |
| Automotive Grade | |
| Current | |
| ESD Classification | |
| Halogen Free | |
| Length | |
| Max Current | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Ratings | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Trip Current | |
| Tripped Power Dissipation | |
| Type | |
| Voltage | |
| Width |

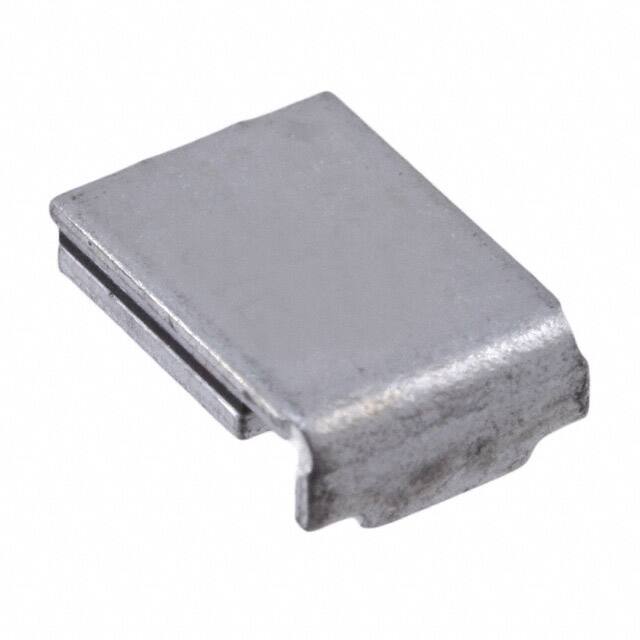

The Bourns MF-SM200-2 is a surface mount polymeric PTC resettable fuse from the MF-SM series. It is designed for overcurrent protection in a wide range of electronic circuits. The device has a hold current of 2.00 A at 23°C and a trip current of 4.00 A. It can withstand a maximum voltage of 15 V and a maximum fault current of 100 A.
The MF-SM200-2 features a low initial resistance of 0.045 Ω (minimum) and a maximum resistance after trip of 0.125 Ω at 23°C. The maximum time to trip is 12.0 seconds at 23°C, and the typical tripped power dissipation is 1.9 W. The device operates over a temperature range of -40°C to 85°C.
This resettable fuse is housed in a 2-SMD (2920) package and is designed for automated surface mount assembly. It is RoHS compliant, lead free, and halogen free. The part is AEC-Q200 qualified and carries cUL and TÜV agency approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
| 10+ | $0.38 | $0.38 |
| 50+ | $0.31 | $0.31 |
| 100+ | $0.28 | $0.28 |
| 250+ | $0.26 | $0.26 |
| 500+ | $0.24 | $0.24 |
| 1,000+ | $0.21 | $0.21 |
| 3,000+ | $0.19 | $0.19 |
| 6,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 2.00 A at 23°C.
The maximum voltage rating is 15 V.
The maximum fault current is 100 A.
The operating temperature range is -40°C to 85°C.
The package is 2-SMD (2920) for surface mount assembly.
Yes, it is RoHS3 compliant and lead free.
The maximum time to trip is 12.0 seconds at 23°C.
