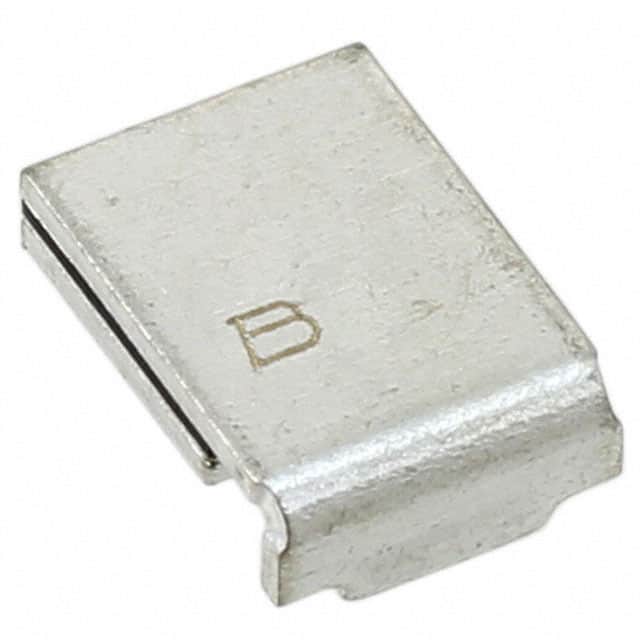

MF-SM185/33-2 Bourns MF-SM185/33-2 is a polymeric PTC resettable fuse rated for 33V max and 1.8A hold current in a 2-SMD surface mount package.
Mfr Part #:

MF-SM185/33-2

Available from 5 distributors
Mfr Name: Bourns
Bourns
Bourns MF-SM185/33-2 is a polymeric PTC resettable fuse rated for 33V max and 1.8A hold current in a 2-SMD surface mount package.
✓ Total Stock: 15,279 pcs
$ Price Range: $0.18 - $0.43

MF-SM185/33-2 Available from 5 distributors

✓ Authorised
✓ Non-Authorised

MF-SM185/33-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Length
Mounting Type
Operating Temperature
Prop 65
Ratings
Resistance
SVHC Present
Storage Temperature
Tape & Reel
Termination Style
Thickness (Max)
Time to Trip
Type
Voltage
Width

MF-SM185/33-2 Description

Short technical summary and product information.

The Bourns MF-SM185/33-2 is a polymeric PTC resettable fuse from the MF-SM series, designed for overcurrent protection in electronic circuits. It features a hold current of 1.8A at 23°C and a trip current of 3.6A, with a maximum voltage rating of 33V and a maximum interrupt current of 40A.



This device offers low resistance, with a minimum initial resistance of 0.04Ω and a maximum resistance of 0.15Ω at 23°C. The typical time to trip is 5 seconds at 23°C, and the tripped power dissipation is 1.9W typical. It is housed in a 2-SMD surface mount package measuring 8.75mm x 6.71mm with a maximum thickness of 3.00mm.



The MF-SM185/33-2 is AEC-Q200 qualified for automotive applications and carries agency approvals including cUL and TÜV. It is RoHS compliant, lead free, and halogen free per Bourns definition. The operating temperature range is -40°C to +85°C.

MF-SM185/33-2 Quick Information

Product Type: PTC Resettable Fuse
Series: MF-SM
Canonical Name: Bourns MF-SM185/33-2 PTC Resettable Fuse
Subcategory: Polymeric PTC

MF-SM185/33-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

MF-SM185/33-2 Estimated Pricing

Qty Low High
1+ $0.43 $0.43
10+ $0.39 $0.39
50+ $0.32 $0.32
100+ $0.30 $0.30
250+ $0.27 $0.27
500+ $0.25 $0.25
1,000+ $0.22 $0.22
3,000+ $0.19 $0.19
6,000+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

MF-SM185/33-2 Features

  • Polymeric PTC resettable overcurrent protection.
  • Rated for 33V max and 1.8A hold current.
  • Surface mount 2-SMD package for automated assembly.
  • AEC-Q200 qualified for automotive applications.
  • RoHS compliant, lead free, and halogen free.

MF-SM185/33-2 Applications

  • Overcurrent protection in automotive electronics.
  • Used in power supplies and battery management systems.
  • Suitable for industrial control and automation equipment.
  • Ideal for consumer electronics requiring resettable protection.

MF-SM185/33-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the hold current of the MF-SM185/33-2?

The hold current (Ihold) is 1.8A at 23°C.

What is the maximum voltage rating?

The maximum voltage (Vmax) is 33V.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What package is the MF-SM185/33-2 available in?

It is available in a 2-SMD surface mount package.

Is the MF-SM185/33-2 RoHS compliant?

Yes, it is RoHS3 compliant.

What is the trip current of the MF-SM185/33-2?

The trip current (Itrip) is 3.6A at 23°C.

What is the maximum interrupt current?

The maximum interrupt current (Imax) is 40A.
