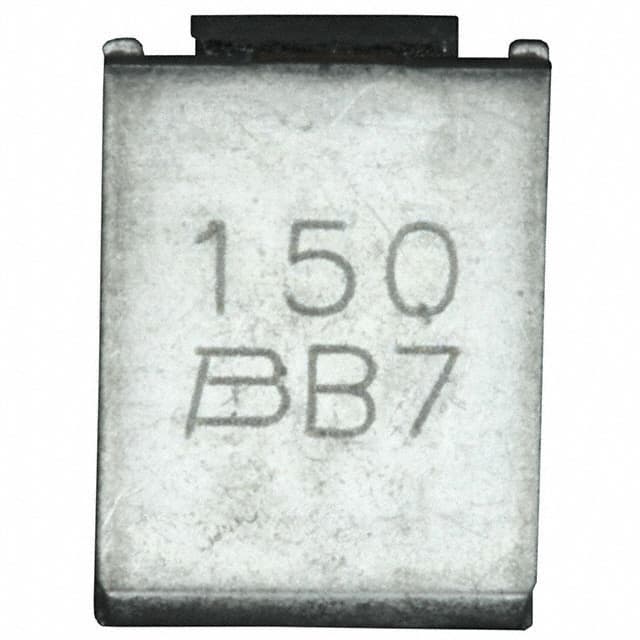

MF-SM150/33-2 Bourns MF-SM150/33-2 is a polymeric PTC resettable fuse rated for 33V with a 1.5A hold current and 40A maximum current, in a surface mount 2-SMD package.
Mfr Part #:

MF-SM150/33-2

Available from 4 distributors
Mfr Name: Bourns
Bourns
Bourns MF-SM150/33-2 is a polymeric PTC resettable fuse rated for 33V with a 1.5A hold current and 40A maximum current, in a surface mount 2-SMD package.
✓ Total Stock: 116,395 pcs
$ Price Range: $0.18 - $0.43

MF-SM150/33-2 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
115,500 pcs
115500 pcs On Request 1 On Request On Request On Request On Request On Request
Non-Authorised Inventory information
475 pcs
475 pcs On Request 1 On Request On Request On Request On Request 2026-04-29 00:15:18
Non-Authorised Inventory information
400 pcs
400 pcs On Request 1 On Request On Request On Request On Request On Request
Non-Authorised Inventory information
20 pcs
20 pcs On Request 1 On Request On Request On Request On Request On Request

MF-SM150/33-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Industrial Grade
Length
Mounting Type
Operating Temperature
Prop 65
Ratings
Resistance
SVHC Present
Tape & Reel
Technology
Thickness (Max)
Time to Trip
Type
Voltage
Width

MF-SM150/33-2 Description

Short technical summary and product information.

The Bourns MF-SM150/33-2 is a polymeric positive temperature coefficient (PTC) resettable fuse designed for overcurrent protection in electronic circuits. It features a hold current of 1.5A and a trip current of 3.0A at 23°C, with a maximum voltage rating of 33V and a maximum interrupt current of 40A.



This device offers low resistance, with a minimum resistance of 0.06Ω and a maximum resistance of 0.25Ω at 23°C, ensuring minimal power loss during normal operation. Typical power dissipation is 1.9W. The maximum time to trip is 5 seconds at 23°C.



The MF-SM150/33-2 is housed in a compact 2-SMD surface mount package measuring 8.75mm x 6.71mm with a maximum thickness of 3.00mm. It operates over a temperature range of -40°C to +85°C and is AEC-Q200 qualified, making it suitable for automotive applications.

MF-SM150/33-2 Quick Information

Product Type: PTC Resettable Fuse
Series: MF-SM150/33
Canonical Name: Bourns MF-SM150/33-2 PTC Resettable Fuse
Subcategory: Surface Mount Polymeric PTC

MF-SM150/33-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

MF-SM150/33-2 Estimated Pricing

Qty Low High
1+ $0.43 $0.43
10+ $0.37 $0.37
50+ $0.32 $0.32
100+ $0.29 $0.29
250+ $0.27 $0.27
500+ $0.25 $0.25
1,000+ $0.22 $0.22
3,000+ $0.19 $0.19
6,000+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

MF-SM150/33-2 Features

  • Polymeric PTC resettable overcurrent protection.
  • Rated for 33V maximum voltage operation.
  • 1.5A hold current with 3.0A trip current.
  • Surface mount 2-SMD package for automated assembly.
  • AEC-Q200 qualified for automotive applications.

MF-SM150/33-2 Applications

  • Overcurrent protection in automotive electronic modules.
  • Protection for power supplies and battery circuits.
  • Used in industrial control and automation equipment.
  • Suitable for consumer electronics requiring resettable protection.

MF-SM150/33-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the hold current of the Bourns MF-SM150/33-2?

The hold current is 1.5A at 23°C.

What is the maximum voltage rating for the MF-SM150/33-2?

The maximum voltage is 33V.

What is the maximum interrupt current of this PTC fuse?

The maximum interrupt current is 40A.

What is the operating temperature range of the MF-SM150/33-2?

The operating temperature range is -40°C to +85°C.

What package type does the MF-SM150/33-2 use?

It uses a surface mount 2-SMD package.

Is the Bourns MF-SM150/33-2 AEC-Q200 qualified?

Yes, it is rated AEC-Q200.

What is the typical power dissipation of the MF-SM150/33-2?

Typical power dissipation is 1.9W at 23°C.
