| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | 12 | On Request | On Request | |
|
169 pcs
|
169 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Resistance | |
| Tape & Reel | |
| Thickness (Max) | |
| Type | |
| Voltage | |
| Width |

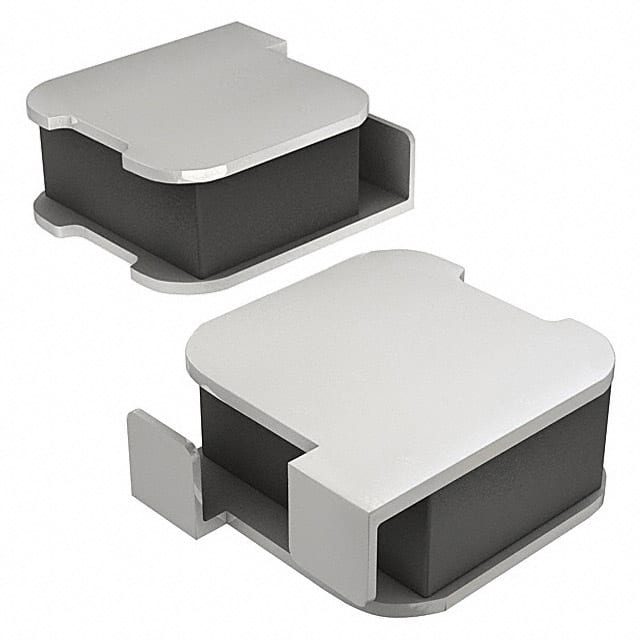

The Bourns MF-SM013/250V-2 is a polymeric PTC resettable fuse designed for overcurrent protection in telecom and general electronic applications. It features a hold current of 130 mA and a trip current of 260 mA, with a maximum operating voltage of 60 V DC and 250 V AC. The device can interrupt currents up to 3 A, making it suitable for protecting sensitive circuits from fault conditions.
This resettable fuse offers an initial resistance range of 4.0 to 7.0 ohms and a post-trip resistance of 16.0 to 20.0 ohms after one hour. Typical time to trip at 1.0 A is 2.0 seconds, and typical tripped power dissipation is 3.0 W. It operates over a temperature range of -40°C to +85°C.
The MF-SM013/250V-2 is housed in a surface mount 2-SMD package with dimensions of 8.90 mm length, 7.20 mm width, and 10.20 mm maximum thickness. It is RoHS compliant and carries cUL (E174545) and TÜV (R50362083) agency recognitions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.83 | $0.83 |
| 10+ | $0.74 | $0.74 |
| 50+ | $0.60 | $0.60 |
| 100+ | $0.57 | $0.57 |
| 200+ | $0.52 | $0.52 |
| 500+ | $0.48 | $0.48 |
| 1,000+ | $0.45 | $0.45 |
| 2,000+ | $0.39 | $0.39 |
| 4,000+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current (Ihold) is 130 mA at 23°C.
60 V DC and 250 V AC.
The maximum interrupt rating is 3 A.
-40°C to +85°C.
Surface mount 2-SMD package.
