| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Maximum Current | |
| Mounting Type | |
| Operating Temperature | |
| Post-Trip Resistance (Max) | |
| Prop 65 | |
| Resistance | |
| Tape & Reel | |
| Time to Trip | |
| Trip Current (Itrip) | |
| Tripped Power Dissipation | |
| Type | |
| Voltage | |
| Width |

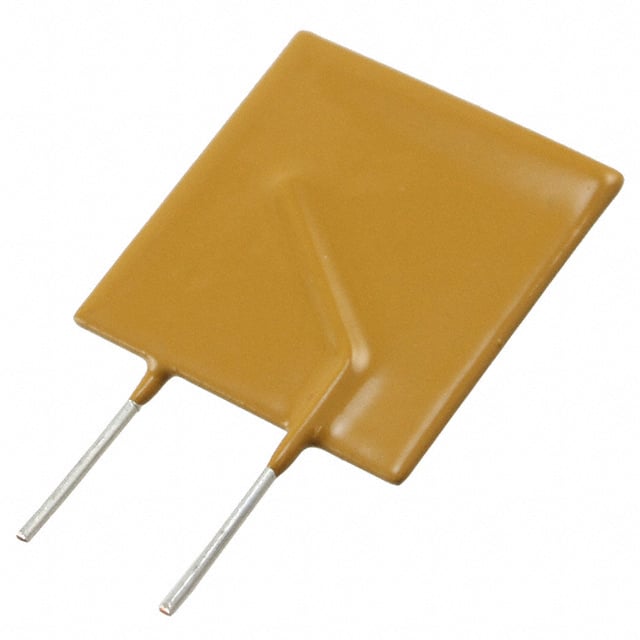

The Bourns MF-RX375/72-0 is a polymeric PTC resettable fuse from the MF-RX/72 series. It is designed for overcurrent protection in low voltage circuits up to 72V. With a hold current of 3.75A and a trip current of 7.50A, it provides reliable protection.
Electrical characteristics include a maximum current rating of 40A, initial resistance range of 30 mΩ to 80 mΩ (typical 50 mΩ), and post-trip resistance maximum of 130 mΩ. The maximum time to trip at 18.75A is 24 seconds, with typical tripped power dissipation of 3.20W.
The device is housed in a radial disc package with through-hole mounting. Dimensions are 23.51mm length, 3.10mm width, 29.50mm height, and lead spacing of 10.20mm. It operates over a temperature range of -40°C to 85°C.
The MF-RX375/72-0 is RoHS compliant, lead-free, and halogen-free. It is suitable for applications such as security systems, loudspeakers, and power transformers. The epoxy polymer insulating material meets UL 94 V-0 flammability requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
| 10+ | $0.62 | $0.62 |
| 50+ | $0.57 | $0.57 |
| 100+ | $0.51 | $0.51 |
| 250+ | $0.49 | $0.49 |
| 500+ | $0.45 | $0.45 |
| 1,000+ | $0.41 | $0.41 |
| 3,000+ | $0.41 | $0.41 |
| 6,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.75 A.
72 V.
40 A.
24 seconds maximum.
Radial, Disc through-hole.
-40°C to 85°C.
Yes, RoHS3 compliant and lead-free.
