| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,960 pcs
|
1960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Agency Approvals | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Height | |
| Interrupt Current (Max) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Options | |
| Resistance | |
| Resistance - Initial (Min) | |
| Resistance - Post Trip (Max) | |
| Tape & Reel | |
| Time to Trip | |
| Trip Current (Itrip) | |
| Tripped Power Dissipation | |
| Type | |
| Voltage | |
| Voltage - Max Intermittent |

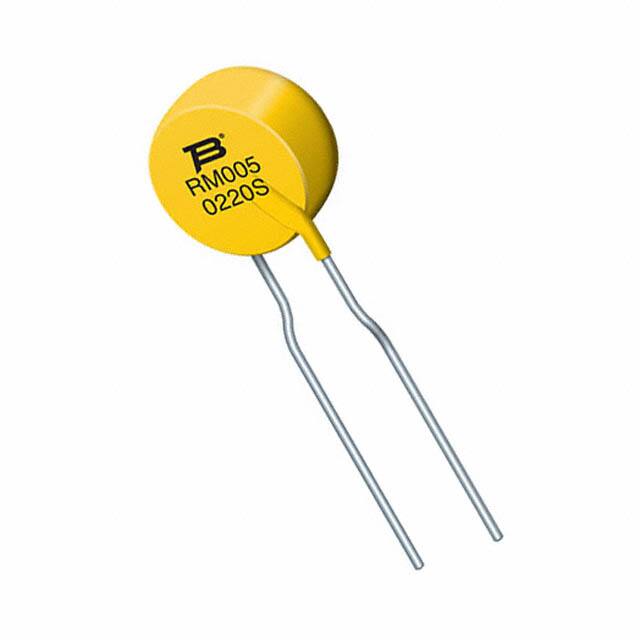

The Bourns MF-RM005/240-2 is a polymeric PTC resettable fuse designed for overcurrent protection in line voltage applications. It has a hold current of 50 mA and a trip current of 0.12 A, with a maximum interrupt current of 1.0 A. The device operates over a temperature range of -20°C to 85°C and is rated for a maximum continuous voltage of 240 VAC and an intermittent voltage of 265 VAC.
This PTC fuse offers a typical time to trip of 10 seconds at 0.25 A and a tripped power dissipation of 0.9 W. Initial resistance ranges from 18.5 Ω to 65.0 Ω at 23°C, with post-trip resistance also at a maximum of 65.0 Ω. The component is housed in a radial disc package with a diameter of 0.327 inches and a thickness of 0.150 inches, with a lead spacing of 2.90 mm. It is through-hole mountable and has a maximum seated height of 12.90 mm.
The MF-RM005/240-2 is suitable for applications such as food blenders, coffee machines, HVAC systems, electric fans, and blowers. It complies with RoHS Directive 2015/863 and is halogen free, with bromine and chlorine content below 900 ppm each. The device is recognized by cUL (E174545) and TÜV (50232433) agencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.45 | $0.45 |
| 10+ | $0.38 | $0.38 |
| 50+ | $0.34 | $0.34 |
| 100+ | $0.33 | $0.33 |
| 200+ | $0.30 | $0.30 |
| 500+ | $0.28 | $0.28 |
| 1,000+ | $0.25 | $0.25 |
| 2,000+ | $0.24 | $0.24 |
| 4,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 50 mA.
The maximum continuous voltage is 240 VAC.
The maximum interrupt current is 1.0 A.
The maximum time to trip is 10 seconds at 0.25 A.
The package is Radial, Disc with through-hole mounting.
The operating temperature range is -20°C to 85°C.
It has cUL (E174545) and TÜV (50232433) approvals.
