| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
615 pcs
|
615 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current - Max | |
| Current - Trip | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Resistance | |
| Resistance (Initial) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Time to Trip | |
| Tripped Power Dissipation | |
| Type | |
| Voltage | |
| Width |

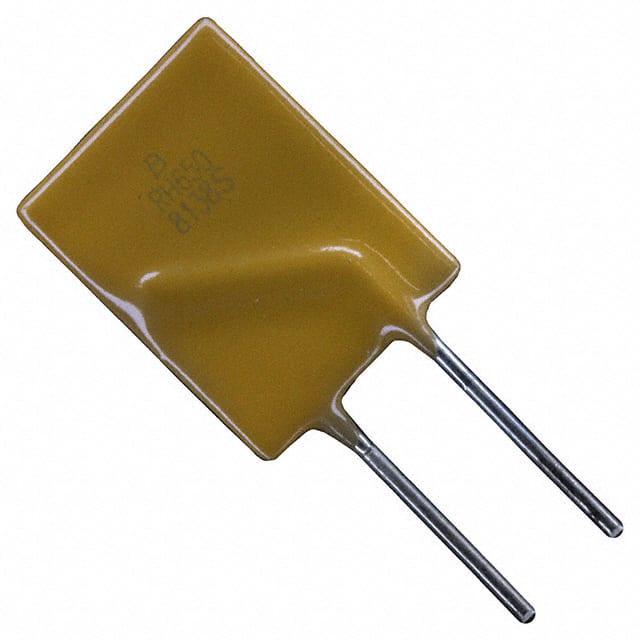

The Bourns MF-RHT650-2 is a polymeric PTC resettable fuse from the MF-RHT series, designed for high-temperature operation up to 125°C. It provides resettable overcurrent protection with a hold current of 6.5A and a trip current of 12.0A. The device can handle a maximum voltage of 16V and a fault current of up to 100A. The initial resistance ranges from 0.011Ω to 0.026Ω at 23°C, and the maximum time to trip at 12A is 5.5 seconds. Typical tripped power dissipation is 4.3W.
The fuse is AEC-Q200 qualified, making it suitable for automotive applications. It is RoHS compliant and halogen free. The through-hole mounting style uses a radial leaded disc package with a lead spacing of 2.90mm. The body dimensions are 12.70mm length, 3.00mm width, and 22.20mm height. The operating temperature range covers -40°C to 125°C, ensuring reliable performance in harsh environments.
| Qty | Low | High |
|---|---|---|
| 9,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 6.5 A.
The maximum voltage rating is 16 V.
The trip current is 12.0 A.
The maximum time to trip at 12 A is 5.5 s.
The operating temperature range is -40°C to 125°C.
Yes, it is AEC-Q200 qualified.
The package type is Radial, Disc with through-hole mounting.
