| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q200 | |
| Automotive Grade | |
| Current | |
| Current - Hold (Ihold) | |
| Current - Trip (Itrip) | |
| Halogen Free | |
| Height | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Resistance | |
| Resistance - Initial (R1) Max | |
| Resistance - Initial (R1) Min | |
| Resistance - Post Trip (R1 Max) | |
| Tape & Reel | |
| Time to Trip | |
| Tripped Power Dissipation | |
| Type | |
| Voltage |

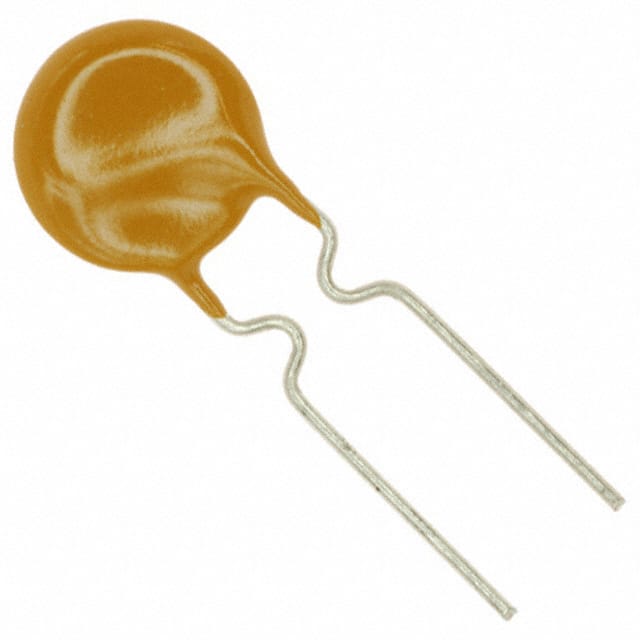

The Bourns MF-RHT200-0 is a polymeric PTC resettable fuse from the MF-RHT series, designed for overcurrent protection in electronic circuits. It features a maximum voltage rating of 16V, a hold current of 2A, and a trip current of 3.8A. The initial resistance ranges from 0.045 ohm minimum to 0.110 ohm maximum, with a maximum post-trip resistance of 12.5 ohms. The device trips within 3 seconds at rated conditions and dissipates 1.4W of power in the tripped state.
This component is through-hole mounted in a radial disc package with a lead spacing of 2.90mm. Its dimensions are 9.40mm diameter by 3.00mm thickness, with a maximum seated height of 14.00mm. The operating temperature range spans from -40°C to 125°C, making it suitable for high-temperature environments.
The MF-RHT200-0 is RoHS3 compliant, halogen free, and qualified to AEC-Q200 automotive stress test standards. It is suitable for use in automotive electronics, power supplies, and general electronic equipment requiring resettable fault protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.56 | $0.56 |
| 10+ | $0.52 | $0.52 |
| 50+ | $0.38 | $0.38 |
| 100+ | $0.37 | $0.37 |
| 250+ | $0.35 | $0.35 |
| 500+ | $0.32 | $0.32 |
| 1,000+ | $0.30 | $0.30 |
| 3,000+ | $0.25 | $0.25 |
| 6,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current (Ihold) is 2A at 23°C.
The maximum voltage (Vmax) is 16V.
The operating temperature range is -40°C to 125°C.
Yes, it is AEC-Q200 compliant.
The package is radial disc with through-hole mounting and 2.90mm lead spacing.
