| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,500 pcs
|
7500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

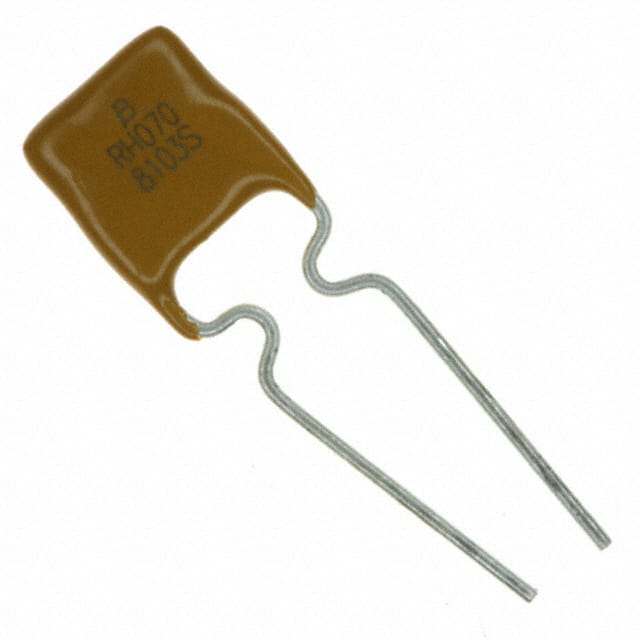

The Bourns MF-RHT070-0 is a polymeric positive temperature coefficient (PTC) resettable fuse from the MF-RHT series. It is designed for overcurrent protection in circuits where automatic reset after fault is desired. The fuse has a hold current of 700 mA at 23°C, a trip current of 1.4 A, and a maximum voltage rating of 16 V. The device can handle a maximum fault current of 40 A and has a typical time to trip of 4 seconds at 1.4 A.
This resettable fuse is suitable for applications requiring high temperature operation, with an operating temperature range of -40°C to 125°C. It is AEC-Q200 qualified for automotive use. The electrical characteristics include initial resistance range of 0.30 to 0.80 Ohm, and a maximum post-trip resistance of 3.5 Ohm. Typical tripped power dissipation is 1.4 W.
The MF-RHT070-0 is housed in a through-hole radial disc package with lead spacing of 2.90 mm. The body dimensions are 6.86 mm length, 3.00 mm width, and 10.80 mm height. It is RoHS compliant, halogen free, and has a moisture sensitivity level of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.65 | $0.65 |
| 10+ | $0.52 | $0.52 |
| 250+ | $0.48 | $0.48 |
| 500+ | $0.44 | $0.44 |
| 1,000+ | $0.40 | $0.40 |
| 2,500+ | $0.38 | $0.38 |
| 3,500+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 700 mA at 23°C.
The maximum voltage rating is 16 V.
The maximum fault current is 40 A.
The typical time to trip is 4 seconds at 1.4 A.
The operating temperature range is -40°C to 125°C.
Yes, it is AEC-Q200 compliant.
It is a through-hole radial disc package with 2.90 mm lead spacing.
