| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48,000 pcs
|
48000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
294 pcs
|
294 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
208 pcs
|
208 pcs | On Request | 1 | On Request | On Request | 1107 | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Resistance | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |
The Bourns MF-R250 is a polymeric Positive Temperature Coefficient (PTC) resettable fuse designed for overcurrent protection in electronic circuits. It is part of the MF-R series and offers a hold current of 2.5 A at 23°C, with a trip current of 5 A. The device can withstand a maximum voltage of 30 V and a maximum current of 40 A.
Key electrical characteristics include an initial resistance range of 0.025 Ω to 0.048 Ω at 23°C, and a maximum post-trip resistance of 70 mΩ. The time to trip at 12.5 A is 10.3 seconds maximum, and typical tripped power dissipation is 1.2 W. The operating temperature range is -40°C to 85°C.

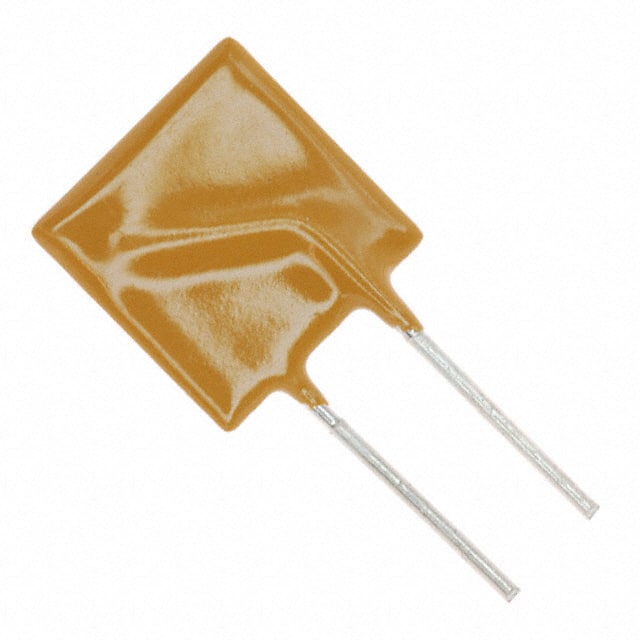

The MF-R250 is housed in a radial disc package with through-hole mounting. It has a lead spacing of 5.10 mm and dimensions of 12.00 mm length, 3.00 mm width, and 18.30 mm height. The device is recognized by cUL and TÜV agencies and has a flammability rating of UL 94V-0.
This PTC resettable fuse is suitable for various overcurrent protection applications where automatic reset after fault condition is desired. It is compliant with RoHS, lead-free, and halogen-free requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.49 | $0.49 |
| 10+ | $0.43 | $0.43 |
| 50+ | $0.37 | $0.37 |
| 100+ | $0.34 | $0.34 |
| 250+ | $0.31 | $0.31 |
| 500+ | $0.28 | $0.28 |
| 1,000+ | $0.26 | $0.26 |
| 3,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 2.5 A at 23°C.
The maximum voltage is 30 V.
The maximum current is 40 A.
The maximum time to trip at 12.5 A is 10.3 seconds.
The MF-R250 comes in a radial disc package with through-hole mounting and 5.10 mm lead spacing.
-40°C to 85°C.
cUL and TÜV.
