| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Height | |
| Initial Resistance (Minimum/Maximum @ 23 °C) | |
| Lead Spacing | |
| Lead Style | |
| Max Current | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Resistance | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Time to Trip | |
| Trip Current | |
| Tripped Power Dissipation (Typical) | |
| Type | |
| Voltage |

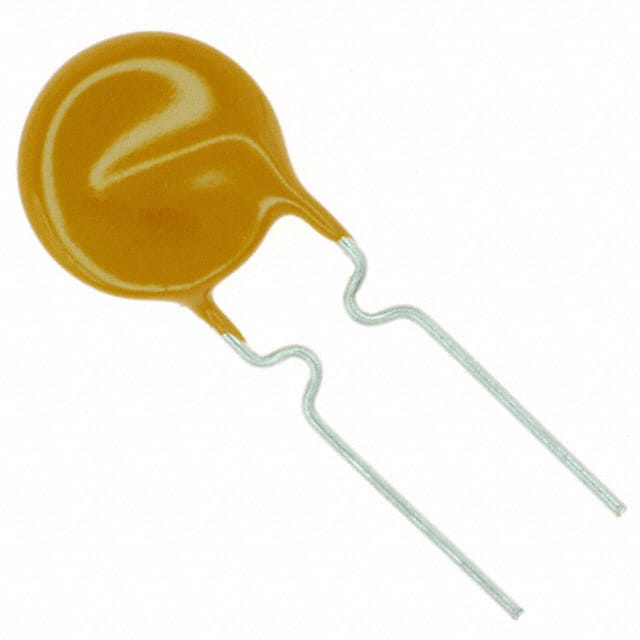

The Bourns MF-R185-2 is a polymeric PTC resettable fuse from the MF-R series. It is designed to provide overcurrent protection in a compact radial, disc package through-hole mounting. The device has a hold current of 1.85 A and a trip current of 3.70 A, making it suitable for applications where moderate current levels need to be protected.
The maximum voltage is 30 V and the maximum fault current is 40 A. The initial resistance at 23 °C ranges from a minimum of 0.04 Ω to a maximum of 0.07 Ω, with a maximum post-trip resistance of 0.11 Ω. The typical tripped power dissipation is 1.0 W. The time to trip at 9.25 A is 8.7 seconds maximum.
The operating temperature range is -40°C to 85°C. The component is RoHS compliant, lead free, and halogen free. It is housed in a radial disc package with a lead spacing of 5.10 mm and a size of 12.00 mm diameter by 3.00 mm thickness.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.43 | $0.43 |
| 50+ | $0.36 | $0.36 |
| 100+ | $0.33 | $0.33 |
| 250+ | $0.30 | $0.30 |
| 500+ | $0.28 | $0.28 |
| 1,000+ | $0.24 | $0.24 |
| 3,000+ | $0.23 | $0.23 |
| 6,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current (Ihold) is 1.85 A at 23 °C.
The trip current (Itrip) is 3.70 A.
The maximum voltage (Vmax) is 30 V.
The operating temperature range is -40°C to 85°C.
It is a through-hole component with a radial, disc package.
Yes, it is RoHS compliant, lead free, and halogen free according to the datasheet.
The typical tripped power dissipation is 1.0 W at 23 °C.
