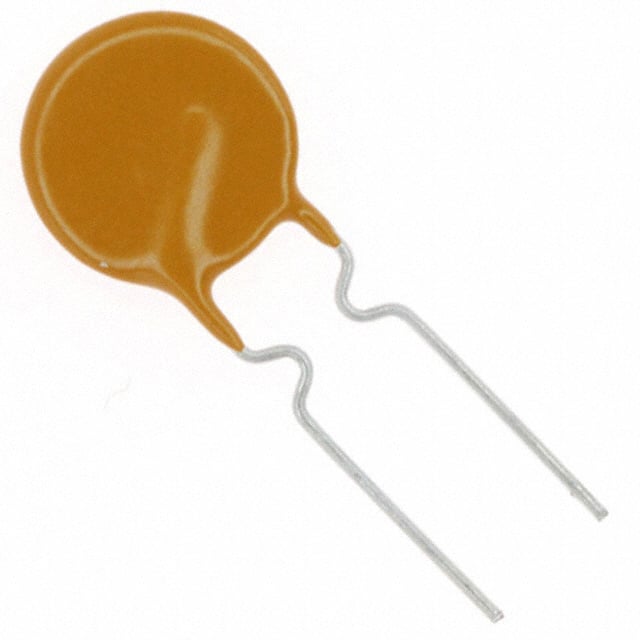

MF-R160 Bourns MF-R160 is a polymeric PTC resettable fuse with 1.6A hold current, 30V max voltage, and 40A max current. It comes in a radial leaded disc package.
Mfr Part #:

MF-R160

Available from 1 distributors
Mfr Name: Bourns
Bourns
Bourns MF-R160 is a polymeric PTC resettable fuse with 1.6A hold current, 30V max voltage, and 40A max current. It comes in a radial leaded disc package.
✓ Total Stock: 13,000 pcs
$ Price Range: $0.20 - $0.46

MF-R160 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
13,000 pcs
On Request
13000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MF-R160 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Diameter
Halogen Free
Height
Lead Spacing
Lead Style
Material
Mounting Type
Operating Temperature
Prop 65
Resistance
Tape & Reel
Thickness
Time to Trip
Type
Voltage
View Similar Products (0)

MF-R160 Description

Short technical summary and product information.

The Bourns MF-R160 is a polymeric PTC resettable fuse from the MF-R series. It is designed for overcurrent protection in low voltage applications. The device has a hold current of 1.6 A and a trip current of 3.2 A, with a maximum voltage rating of 30 V and a maximum interrupt current of 40 A.



The initial resistance at 23°C ranges from 0.055 Ω to 0.105 Ω, and the post-trip resistance is 0.15 Ω maximum. The time to trip at 8 A is 8 seconds maximum. Typical tripped power dissipation is 0.9 W. The operating temperature range is -40°C to 85°C.



The MF-R160 is housed in a radial leaded disc package with a diameter of 10.2 mm, thickness of 3.0 mm, and height of 16.8 mm. Lead spacing is 5.1 mm. The device is through hole mountable. The epoxy polymer insulating material meets UL 94V-0 flame retardant rating.



The component is RoHS compliant, lead free, and halogen free. It carries cUL and TÜV agency approvals.

MF-R160 Quick Information

Product Type: PTC Resettable Fuse
Series: MF-R
Canonical Name: Bourns MF-R160 Polymeric PTC Resettable Fuse
Subcategory: Radial Leaded PTC Resettable Fuse

MF-R160 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

MF-R160 Estimated Pricing

Qty Low High
1+ $0.46 $0.46
10+ $0.42 $0.42
50+ $0.33 $0.33
100+ $0.31 $0.31
250+ $0.29 $0.29
500+ $0.27 $0.27
1,000+ $0.24 $0.24
3,000+ $0.20 $0.20
6,000+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MF-R160 Features

  • 1.6A hold current rating.
  • 30V maximum voltage rating.
  • 40A maximum current rating.
  • Radial leaded through hole package.
  • RoHS and halogen free compliant.

MF-R160 Applications

  • Overcurrent protection for power supplies.
  • Protection for battery charging circuits.
  • Used in consumer electronics.
  • Suitable for automotive applications.

MF-R160 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the hold current of the MF-R160?

The hold current is 1.6 A.

What is the maximum voltage rating?

The maximum voltage is 30 V.

What is the maximum interrupt current?

The maximum interrupt current is 40 A.

What is the time to trip at 8 A?

The maximum time to trip at 8 A is 8.0 seconds.

What is the package type of the MF-R160?

The MF-R160 comes in a radial, disc package with through hole mounting. Diameter 10.2 mm, thickness 3.0 mm, height 16.8 mm, lead spacing 5.1 mm.

What is the operating temperature range?

-40°C to 85°C.

Is the MF-R160 RoHS compliant?

Yes, it is RoHS compliant and lead free.
