| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,927 pcs
|
6927 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Current | |
| Diameter | |
| Halogen Free | |
| Height | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Thickness | |
| Time to Trip | |
| Type | |
| Voltage |

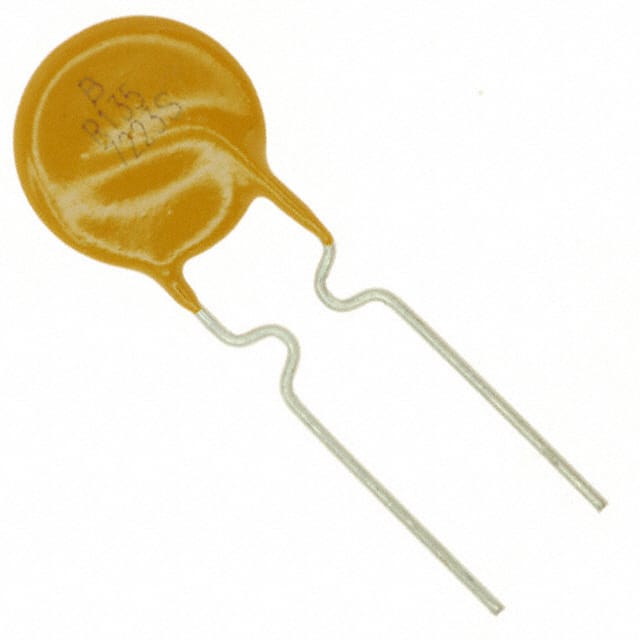

The Bourns MF-R135 is a PTC resettable fuse from the MF-R series, designed for overcurrent protection in a wide range of electronic circuits. It features a hold current of 1.35 A and a trip current of 2.70 A, with a maximum voltage rating of 30 V and a maximum fault current handling capability of 40 A. The device has an initial resistance range of 0.065 Ohm to 0.115 Ohm at 23°C, and a post-trip resistance maximum of 0.17 Ohm. Typical tripped power dissipation is 0.80 W at 23°C.
This resettable fuse is housed in a radial, disc package with a diameter of 8.90 mm and a thickness of 3.00 mm. It features a lead spacing of 5.10 mm and a seated height of 18.90 mm, making it suitable for through-hole mounting on printed circuit boards. The operating temperature range is -40°C to 85°C.
The MF-R135 is RoHS compliant, lead free, and halogen free. It carries a California Proposition 65 warning for cancer and reproductive harm. The device is suitable for use in power supplies, battery chargers, and other applications requiring resettable overcurrent protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.40 | $0.40 |
| 50+ | $0.35 | $0.35 |
| 100+ | $0.30 | $0.30 |
| 250+ | $0.29 | $0.29 |
| 500+ | $0.27 | $0.27 |
| 1,000+ | $0.23 | $0.23 |
| 3,000+ | $0.22 | $0.22 |
| 6,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current (Ihold) is 1.35 A at 23°C.
The maximum voltage (Vmax) is 30 V.
The maximum current (Imax) is 40 A.
The maximum time to trip at 6.75 A and 23°C is 7.3 seconds.
The operating temperature range is -40°C to 85°C.
The MF-R135 comes in a radial, disc through-hole package with a diameter of 8.90 mm and lead spacing of 5.10 mm.
