| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
421 pcs
|
421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
421 pcs
|
421 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Height | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Resistance | |
| Storage Temperature | |
| Tape & Reel | |
| Time to Trip | |
| Type | |
| Voltage |

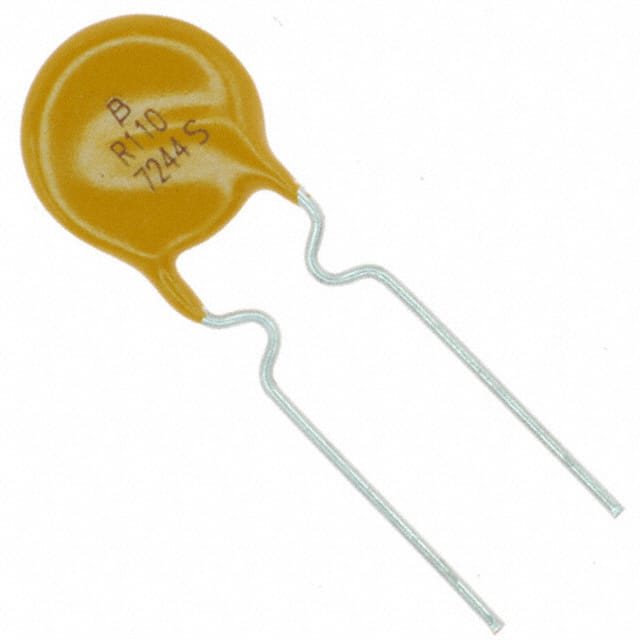

The Bourns MF-R110-2 is a PTC resettable fuse from the MF-R series. It features a hold current of 1.1 A and a trip current of 2.2 A, with a maximum voltage rating of 30 V and a maximum interrupt current of 40 A. The initial resistance at 23°C ranges from 0.10 to 0.18 ohms, with a post-trip resistance maximum of 0.27 ohms. The time to trip at 5.5 A is a maximum of 6.6 seconds, and the typical tripped power dissipation is 0.7 W.
This device is designed for overcurrent protection in a variety of applications. It is packaged in a radial disc through-hole configuration with a lead spacing of 5.1 mm (0.201 inches) and dimensions of 0.350 inches diameter by 0.118 inches thickness (8.90 mm x 3.00 mm) with a height of 14.00 mm (0.551 inches).
The MF-R110-2 is RoHS compliant, lead free, and halogen free. It carries agency approvals from cUL and TÜV. The operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.49 | $0.49 |
| 10+ | $0.43 | $0.43 |
| 50+ | $0.39 | $0.39 |
| 100+ | $0.35 | $0.35 |
| 250+ | $0.33 | $0.33 |
| 500+ | $0.32 | $0.32 |
| 1,000+ | $0.31 | $0.31 |
| 3,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 1.1 A.
30 V.
40 A.
Maximum 6.6 seconds.
Radial, disc through-hole package with lead spacing 5.1 mm.
cUL and TÜV.
-40°C to 85°C.
