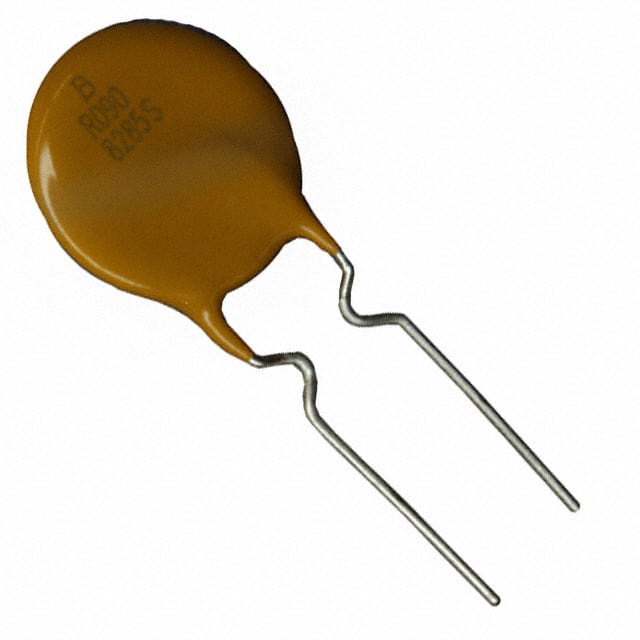

MF-R090 Bourns MF-R090 is a PTC resettable fuse with 60V max voltage, 900mA hold current, and 40A max current. It comes in a radial, disc through-hole package.
Mfr Part #:

MF-R090

Available from 1 distributors
Mfr Name: Bourns
Bourns
Bourns MF-R090 is a PTC resettable fuse with 60V max voltage, 900mA hold current, and 40A max current. It comes in a radial, disc through-hole package.
✓ Total Stock: 500 pcs
$ Price Range: $0.18 - $0.40

MF-R090 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MF-R090 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Height
Lead Spacing
Lead Style
Length
Mounting Type
Operating Temperature
Prop 65
Resistance
SVHC Present
Tape & Reel
Termination Style
Time to Trip
Type
Voltage
Width
View Similar Products (0)

MF-R090 Description

Short technical summary and product information.

The Bourns MF-R090 is a polymeric PTC resettable fuse from the MF-R series, designed for overcurrent protection in a wide range of applications. It features a hold current of 900 mA and a trip current of 1.80 A, with a maximum operating voltage of 60 V and a maximum fault current of 40 A. The initial resistance ranges from 0.14 Ω to 0.31 Ω, with a maximum post-trip resistance of 0.47 Ω. At 4.5 A, the time to trip is a maximum of 7.2 seconds, and typical tripped power dissipation is 1.00 W. The device operates over a temperature range of -40°C to 85°C. The MF-R090 is housed in a radial, disc through-hole package with a lead spacing of 5.10 mm and dimensions of 11.70 mm x 3.10 mm x 16.70 mm. It is compliant with RoHS, lead-free, and halogen-free requirements, and carries a California Prop 65 warning.

MF-R090 Quick Information

Product Type: PTC Resettable Fuse
Series: MF-R
Canonical Name: Bourns MF-R090 PTC Resettable Fuse
Subcategory: Polymeric PTC Resettable Fuse

MF-R090 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

MF-R090 Estimated Pricing

Qty Low High
1+ $0.40 $0.40
10+ $0.36 $0.36
50+ $0.30 $0.30
100+ $0.28 $0.28
250+ $0.25 $0.25
500+ $0.23 $0.23
1,000+ $0.21 $0.21
2,500+ $0.20 $0.20
5,000+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

MF-R090 Features

  • 900mA hold current with 1.80A trip current.
  • 60V maximum operating voltage.
  • 40A maximum fault current capability.
  • Radial through-hole package with 5.10mm lead spacing.
  • RoHS and halogen free compliant.

MF-R090 Applications

  • Protects power supplies from overcurrent faults.
  • Ideal for automotive electronics protection.
  • Used in battery charging circuits.
  • Suitable for telecommunication equipment.
  • Protects motor control circuits.

MF-R090 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the hold current of the MF-R090?

The hold current is 900 mA.

What is the maximum voltage rating of the MF-R090?

The maximum voltage rating is 60 V.

What is the maximum fault current the MF-R090 can handle?

The maximum fault current is 40 A.

What is the time to trip for the MF-R090 at 4.5 A?

The maximum time to trip at 4.5 A is 7.2 seconds.

What is the operating temperature range of the MF-R090?

The operating temperature range is -40°C to 85°C.

What is the package type of the MF-R090?

The package type is radial, disc through-hole.

Is the MF-R090 RoHS compliant?

Yes, it is RoHS3 compliant.
