| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49,500 pcs
|
49500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
61 pcs
|
61 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Current | |
| Current - Trip (Itrip) | |
| Halogen Free | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Tripped) | |
| Prop 65 | |
| Resistance | |
| Resistance (Initial) | |
| Storage Temperature | |
| Tape & Reel | |
| Time to Trip | |
| Type | |
| Voltage |

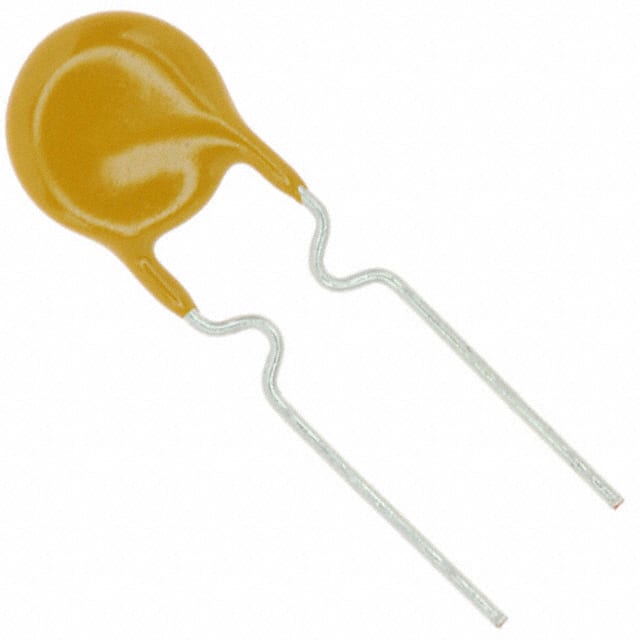

The Bourns MF-R050 is a polymeric positive temperature coefficient (PTC) resettable overcurrent protection device. It is designed to protect circuits from overcurrent faults by transitioning from a low-resistance state to a high-resistance state when the current exceeds the trip threshold. Once the fault is cleared and power is removed, the device resets to its low-resistance state.
Key electrical specifications include a maximum voltage of 60V, a hold current of 500 mA, and a trip current of 1 A. The initial resistance ranges from 0.41 Ω to 0.77 Ω, with a maximum post-trip resistance of 1.17 Ω. The maximum time to trip at 2.5 A is 4 seconds, and typical power dissipation when tripped is 0.75 W.
The MF-R050 is housed in a radial disc package with through-hole mounting, measuring 7.90 mm diameter by 3.10 mm thickness, with a height of 13.70 mm and lead spacing of 5.10 mm. It operates over a temperature range of -40°C to 85°C. The device is RoHS compliant, lead-free, and halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
| 10+ | $0.35 | $0.35 |
| 50+ | $0.30 | $0.30 |
| 100+ | $0.27 | $0.27 |
| 250+ | $0.24 | $0.24 |
| 500+ | $0.22 | $0.22 |
| 1,000+ | $0.21 | $0.21 |
| 3,000+ | $0.18 | $0.18 |
| 6,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current (Ihold) is 500 mA.
The maximum voltage is 60 V.
The trip current (Itrip) is 1 A.
The operating temperature range is -40°C to 85°C.
The package is Radial, Disc with through-hole mounting.
The maximum time to trip at 2.5 A is 4 seconds.
Yes, the MF-R050 is RoHS compliant and lead-free.
