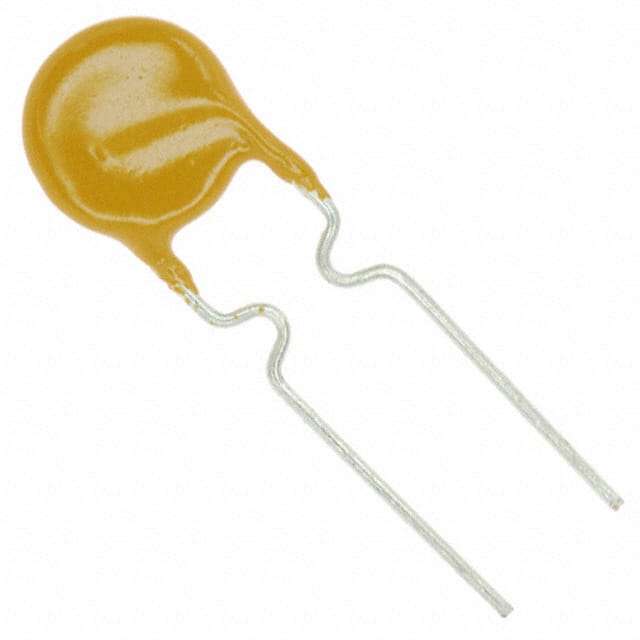

MF-R030 Bourns MF-R030 is a PTC resettable fuse with 60V max voltage and 300mA hold current. It features a radial through-hole package and is RoHS compliant.
Mfr Part #:

MF-R030

Available from 3 distributors
Mfr Name: Bourns
Bourns
Bourns MF-R030 is a PTC resettable fuse with 60V max voltage and 300mA hold current. It features a radial through-hole package and is RoHS compliant.
✓ Total Stock: 9,698 pcs
$ Price Range: $0.16 - $0.44

MF-R030 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
9,533 pcs
On Request
9533 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MF-R030 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Height
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Prop 65
Resistance
Termination Style
Time to Trip
Type
Voltage
View Similar Products (0)

MF-R030 Description

Short technical summary and product information.

The Bourns MF-R030 is a polymeric PTC resettable fuse from the MF-R series. It is designed for overcurrent protection in electronic circuits, automatically resetting after the fault is cleared. Key electrical specifications include a hold current of 300 mA at 23°C, a trip current of 600 mA, and a maximum voltage rating of 60 V. The device can handle up to 40 A fault current.



The initial resistance ranges from 0.76 Ω to 1.36 Ω at 23°C, with a maximum post-trip resistance of 2.1 Ω. The time to trip is 3 seconds maximum at 1.5 A. Typical tripped power dissipation is 0.5 W. The operating temperature range is -40°C to 85°C.



The MF-R030 is packaged in a radial disc form factor with through-hole mounting. It has a diameter of 7.40 mm and thickness of 3.10 mm, with a height of 13.40 mm including leads. Lead spacing is 5.10 mm. The device is RoHS compliant, lead-free, and halogen-free per Bourns definition. It carries cUL and TÜV agency approvals.

MF-R030 Quick Information

Product Type: PTC Resettable Fuse
Series: MF-R
Canonical Name: Bourns MF-R030 PTC Resettable Fuse, 60V, 300mA Hold
Subcategory: Polymeric PTC

MF-R030 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 - Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

MF-R030 Estimated Pricing

Qty Low High
1+ $0.44 $0.44
5+ $0.36 $0.36
10+ $0.33 $0.33
50+ $0.28 $0.28
100+ $0.26 $0.26
250+ $0.23 $0.23
500+ $0.21 $0.21
1,000+ $0.20 $0.20
5,000+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

MF-R030 Features

  • 300 mA hold current at 23°C.
  • 60 V maximum voltage rating.
  • 40 A maximum fault current.
  • Radial through-hole package.
  • RoHS compliant and lead-free.

MF-R030 Applications

  • Overcurrent protection in power supplies.
  • Protection for battery charging circuits.
  • Used in consumer electronics and industrial controls.

MF-R030 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the hold current of the MF-R030?

300 mA at 23°C.

What is the maximum voltage rating?

60 V.

What is the maximum fault current?

40 A.

What is the time to trip?

3 seconds maximum at 1.5 A.

What is the operating temperature range?

-40°C to 85°C.

What is the package type?

Radial, Disc through-hole.

Is the MF-R030 RoHS compliant?

Yes, RoHS compliant and lead-free.
