| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,775 pcs
|
2775 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,775 pcs
|
2775 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Resistance | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Time to Trip | |
| Type | |
| Voltage |

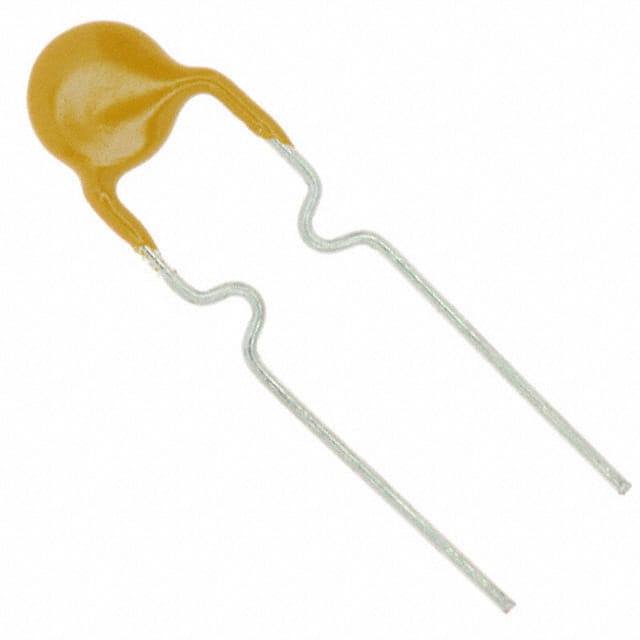

The Bourns MF-R017 is a polymeric positive temperature coefficient (PTC) resettable fuse designed for overcurrent protection. It is part of the MF-R series and offers a 60V maximum voltage and 170mA hold current. The device automatically resets after the fault is cleared, making it suitable for applications where replacing a fuse is impractical.
The MF-R017 has a trip current of 340mA and a maximum current rating of 40A. Its initial resistance ranges from 2Ω to 3.2Ω, with a maximum post-trip resistance of 8Ω. The time to trip at 0.85A is a maximum of 3 seconds, and typical tripped power dissipation is 0.48W.
The fuse is housed in a radial disc package with through-hole mounting. It has a diameter of 7.40mm, thickness of 3.10mm, and a height of 12.70mm. Lead spacing is 5.10mm. Operating temperature range is -40°C to 85°C.
The MF-R017 is RoHS compliant, lead-free, and halogen-free. It carries cUL and TUV agency approvals. This component is suitable for a wide range of electronic circuits requiring reliable overcurrent protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.40 | $0.40 |
| 10+ | $0.32 | $0.32 |
| 50+ | $0.30 | $0.30 |
| 100+ | $0.23 | $0.23 |
| 250+ | $0.21 | $0.21 |
| 1,000+ | $0.21 | $0.21 |
| 2,500+ | $0.21 | $0.21 |
| 3,500+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
170 mA.
60 V.
40 A.
Maximum 3 seconds.
Radial disc, through-hole mounting.
Yes, RoHS Compliant per Directive 2015/863.
cUL and TUV.
