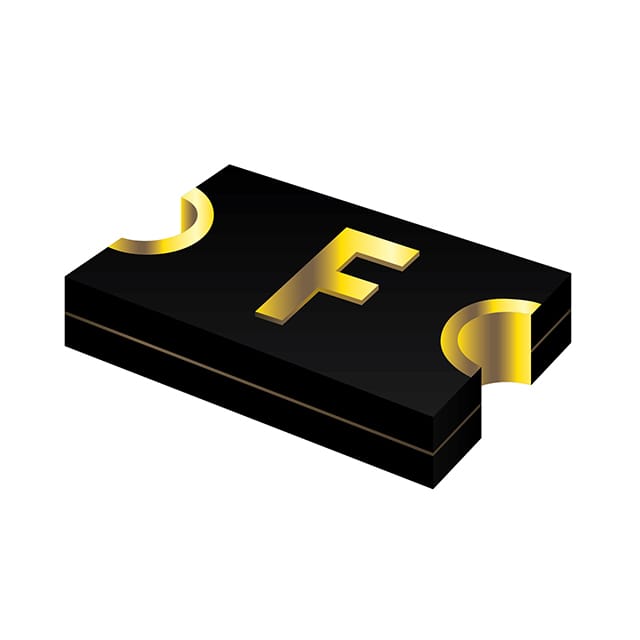

The Bourns MF-NSHT050KX-2 is a polymeric Positive Temperature Coefficient (PTC) resettable fuse designed for overcurrent protection in electronic circuits. It features a maximum voltage rating of 16V and a hold current of 500mA at 23°C in still air, with a trip current of 2.5A. The device can handle a maximum fault current of 20A and has a typical power dissipation of 0.9W.
Electrical characteristics include a minimum initial resistance of 0.17Ω and a maximum post-trip resistance of 1.6Ω. The time to trip is typically 100ms at 8A. The fuse operates over a wide temperature range of -40°C to 125°C, making it suitable for demanding environments. The part is AEC-Q200 qualified, indicating it meets automotive stress test requirements, and is RoHS3 compliant.
The MF-NSHT050KX-2 is housed in a compact 1206 (3216 Metric) concave surface mount package measuring 3.20mm x 1.60mm with a maximum thickness of 1.20mm. It is designed for surface mount assembly and is available in tape and reel, cut tape, or Digi-Reel packaging options.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
| 10+ | $0.54 | $0.54 |
| 50+ | $0.51 | $0.51 |
| 100+ | $0.44 | $0.44 |
| 500+ | $0.38 | $0.38 |
| 3,000+ | $0.38 | $0.38 |
| 6,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current (Ihold) is 500 mA at 23°C in still air.
The maximum voltage (Vmax) is 16V.
The maximum fault current (Imax) is 20A.
The time to trip is 100 ms maximum at 8A, 23°C in still air.
The package is 1206 (3216 Metric), Concave, with dimensions 3.20mm x 1.60mm and maximum thickness 1.20mm.
The operating temperature range is -40°C to 125°C.
Yes, it is AEC-Q200 qualified, making it suitable for automotive applications.
