| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Storage Temperature | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

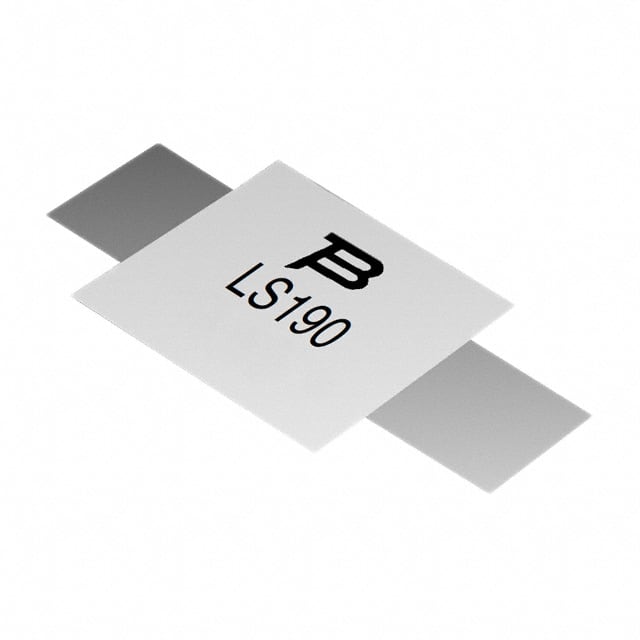

The Bourns MF-LS190 is a polymeric PTC resettable fuse designed for overcurrent protection. It has a hold current of 1.9A and a trip current of 4.2A at 23°C, with a maximum voltage rating of 24V. The device can handle fault currents up to 100A. Initial resistance ranges from 0.030 to 0.057 ohms, and post-trip resistance after one hour is maximum 0.100 ohms. Time to trip at 23°C is 10 seconds maximum, with typical tripped power dissipation of 3.0W.
The operating temperature range is -40°C to 85°C, and the maximum device surface temperature when tripped is 125°C. The fuse is housed in a strap package measuring 22.35mm x 10.60mm x 1.10mm, with user-defined mounting. It is RoHS compliant. Common applications include rechargeable battery pack protection, cellular phones, and laptop computers, particularly in environments with elevated ambient temperatures.
| Qty | Low | High |
|---|---|---|
| 6,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 1.9A at 23°C.
The trip current is 4.2A at 23°C.
The maximum voltage is 24V.
The time to trip is 10 seconds maximum at specified current and 23°C.
The initial resistance ranges from 0.030 to 0.057 ohms.
The operating temperature range is -40°C to 85°C.
The package is a Strap with user-defined mounting.
