| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Agency Approvals | |
| Automotive Grade | |
| Current | |
| Current - Max | |
| Halogen Free | |
| Hold Current (Ihold) | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Resistance - Maximum (R1max) | |
| Resistance - Minimum (Rmin) | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Time to Trip (Typical @ 1A) | |
| Trip Current (Itrip) | |
| Tripped Power Dissipation | |
| Type | |
| Voltage | |
| Width |
The Bourns MF-ASML050/6-2 is a low ohmic polymeric PTC resettable fuse designed for overcurrent protection in low-voltage applications. It has a maximum voltage rating of 6V and can handle up to 50A of fault current. The device offers a hold current of 0.5A and a trip current of 1.0A at 23°C, making it suitable for circuits requiring precise current limiting.
The fuse features a fast time-to-trip, typically 8.0 seconds at 1A, and a tripped power dissipation of 0.5W. Its resistance ranges from a minimum of 0.04Ω to a maximum of 0.5Ω after reflow, ensuring low power loss during normal operation. The operating temperature range is -40°C to 85°C, allowing use in a variety of environments.

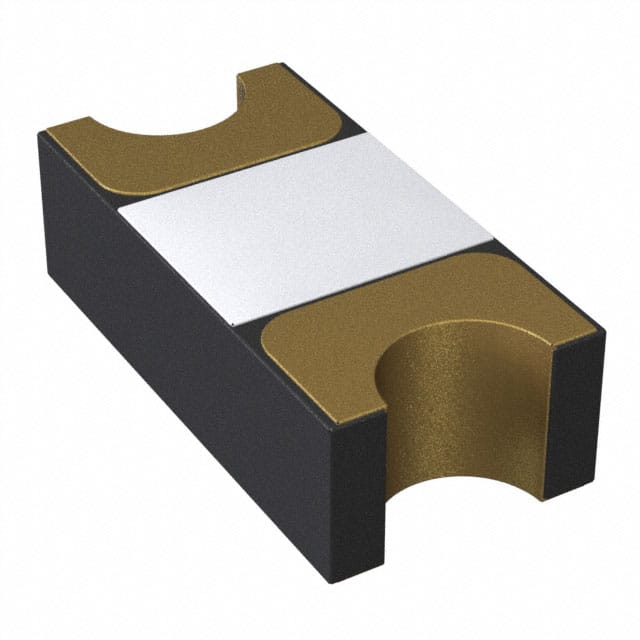

The MF-ASML050/6-2 is housed in a compact 0402 (1005 metric) concave surface mount package with a low profile of 0.6mm. It is RoHS compliant, lead-free, and halogen-free, and carries cUL and TÜV agency approvals for safety.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.73 | $0.73 |
| 50+ | $0.65 | $0.65 |
| 100+ | $0.51 | $0.51 |
| 250+ | $0.44 | $0.44 |
| 500+ | $0.39 | $0.39 |
| 1,000+ | $0.34 | $0.34 |
| 2,500+ | $0.34 | $0.34 |
| 5,000+ | $0.28 | $0.28 |
| 10,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 6V.
The hold current is 0.5A, trip current is 1.0A, and maximum current is 50A.
The maximum fault current it can handle is 50A.
The typical time to trip at 1A is 8.0 seconds.
It comes in a 0402 (1005 metric) concave surface mount package.
The operating temperature range is -40°C to 85°C.
It has cUL (E174545) and TÜV (R50391579) approvals.
