| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Isolation | |
| Voltage - Output 1 | |
| Width |

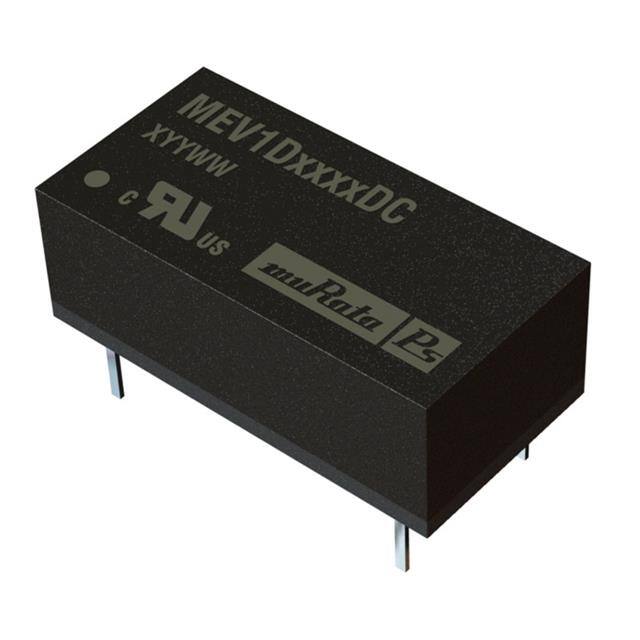

This Murata MEV1S1215DC is an isolated module DC DC converter designed for ITE (Commercial) applications. It operates with an input voltage range of 10.8V to 13.2V and delivers a stable 15V output at a maximum current of 67mA, providing 1W of power.
The converter features an efficiency of 77% and an isolation voltage of 3 kV. It is designed for through-hole mounting and comes in a 14-DIP module package with 5 leads. The operating temperature range is -40°C to 85°C.
Key specifications include a 1W power rating, 15V output voltage, and 67mA maximum output current. The dimensions are 19.7mm in length, 10.0mm in width, and 7.0mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 15V.
The maximum output current is 67mA.
The input voltage range is 10.8V to 13.2V.
The power rating is 1W.
The operating temperature range is -40°C to 85°C.
It is mounted using the through-hole method.
The isolation voltage is 3 kV.
