| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

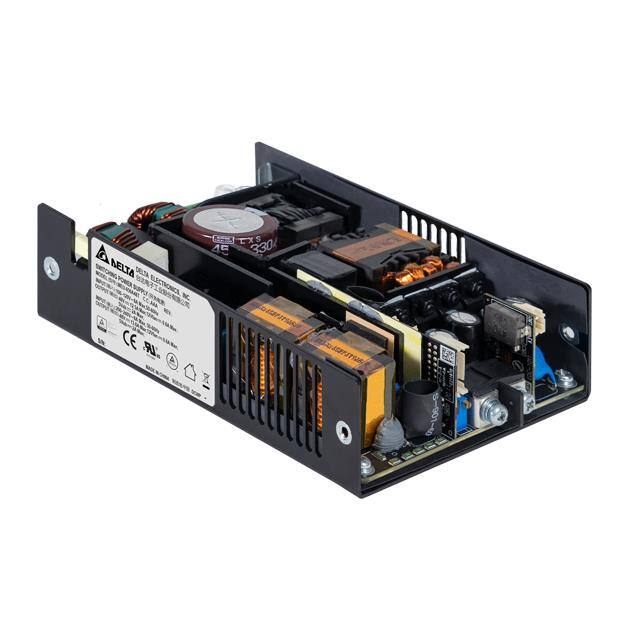

The Delta Electronics MEU-650A48T AAA is an open-frame, conformal coated AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a 48V output voltage and can deliver up to 50A of current, with a power rating of 401W, or 600W with forced air.
Key features include adjustable output, remote on/off, remote sense, and a standby output. The converter operates within a temperature range of -20°C to 70°C and boasts high efficiency of 96%. Its dimensions are 152.4mm x 101.6mm x 40.0mm, making it suitable for chassis mounting.
This AC/DC converter meets safety standards including 60601-1, 60950-1, and 62368-1. It is RoHS3 compliant and has an MSL of 1.
The output voltage is 48V.
The maximum output current is 50 A.
The power rating is 401W (600W Forced Air).
The operating temperature range is -20°C to 70°C.
It uses chassis mount.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
