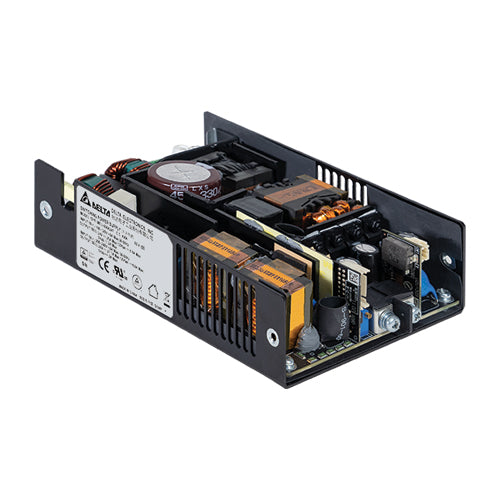

The Delta Electronics MEU-650A24T AAA is an open-frame, conformal coated AC/DC power supply designed for ITE (Commercial) and Medical applications. It operates with a universal input voltage range of 90-264Vac and provides a stable 24Vdc output.
Key electrical specifications include a maximum output current of 18.75A and a maximum power rating of 450W. The unit boasts high efficiency up to 96% and features such as adjustable output, remote on/off, remote sense, standby output, and universal input. It offers an isolation voltage of 4kV.
With a compact chassis mount design, its dimensions are 152.4mm x 101.6mm x 40.0mm. The operating temperature range is -20°C to +70°C, making it suitable for various environmental conditions. Safety certifications include IEC/EN 60601-1, ANSI/AAMI ES 60601-1 for medical applications, and IEC 62368-1, UL 62368-1, UL 60950-1 for industrial safety.
This power supply is compliant with RoHS3 standards and has an MSL rating of 1. It is designed for reliable performance in demanding applications requiring a stable and efficient power source.
90-264Vac.
24Vdc.
18.75A.
96%.
-20°C to +70°C.
Chassis mount, open frame with conformal coating.
Adjustable output, remote on/off, remote sense, standby output, universal input.
