| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

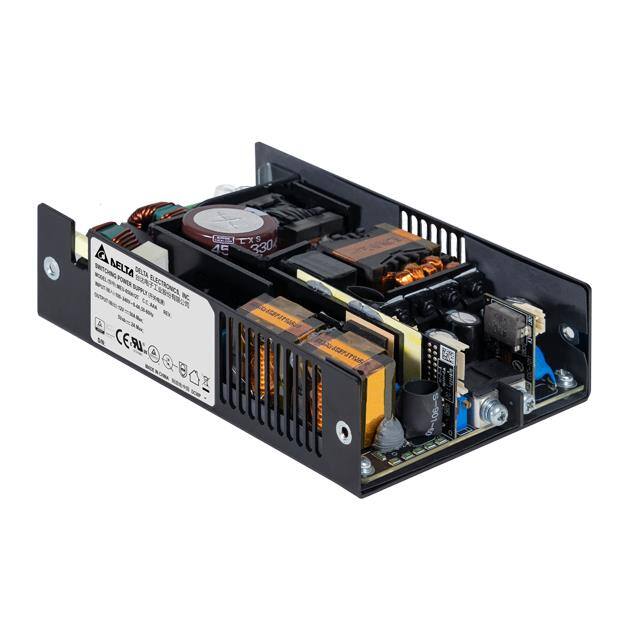

The Delta Electronics MEU-650A12T AAA is an open frame, conformal coated AC DC converter designed for ITE (Commercial) and Medical applications. It provides a single output of 12V with a power rating of 401W, or 600W with forced air.
Key electrical specifications include a universal input voltage range of 110 to 264 VAC and an output current of 50A. The converter boasts high efficiency of 96% and features such as adjustable output, remote on/off, remote sense, and standby output.
Mechanically, it is designed for chassis mounting and has dimensions of 6.00" L x 4.00" W x 1.57" H. The operating temperature range is -20°C to 70°C. It meets safety standards including 60601-1, 60950-1, and 62368-1, with an isolation voltage of 4 kV.
The output voltage is 12V.
The power rating is 401W (600W Forced Air).
The dimensions are 152.4mm x 101.6mm x 40.0mm.
The operating temperature range is -20°C to 70°C.
It complies with 60601-1, 60950-1, and 62368-1.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
