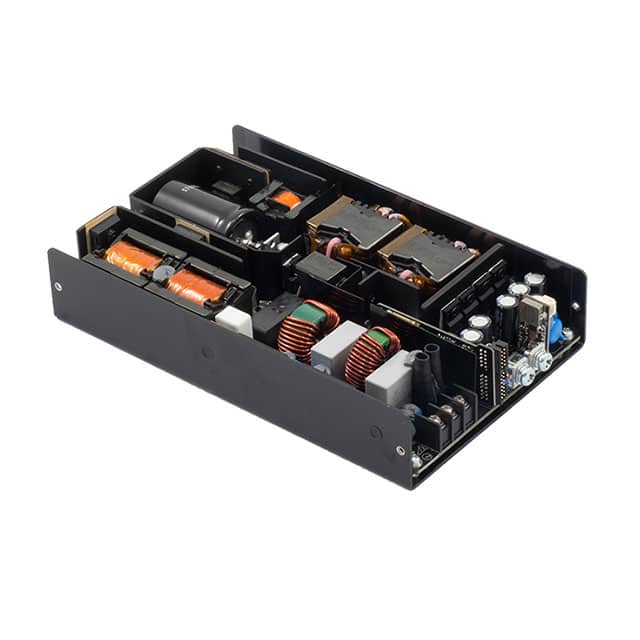

The Delta Electronics MEU-600C48T AAA is a high-performance AC DC converter delivering 600W of power with a stable 48V output at 12.5A. This enclosed switching power supply is designed for demanding applications, featuring universal input (85-264 VAC), Power Factor Correction (PFC), and support for PMBus™ communication.
Key features include adjustable output, load sharing capabilities, and remote on/off functionality, making it versatile for various system integrations. The unit operates efficiently at 95% and is built to withstand temperatures from -20°C to +70°C with derating.
With dimensions of 203.2mm x 127mm x 40mm, it is suitable for chassis mounting. The MEU-600C48T AAA is approved by multiple agencies including CB Scheme, CE, TUV, and UL, and is suitable for ITE (Commercial) and Medical industry applications. It complies with standards such as 60601-1 and 60950-1.
The output power is 600W.
The output voltage for Channel 1 is 48V and the output current is 12.5A.
The input voltage range is 85 VAC to 264 VAC.
The operating temperature range is -20°C to +70°C.
The dimensions are 203.2mm in length, 127mm in width, and 40mm in height.
It is suitable for ITE (Commercial) and Medical industry applications.
The efficiency is 95%.
