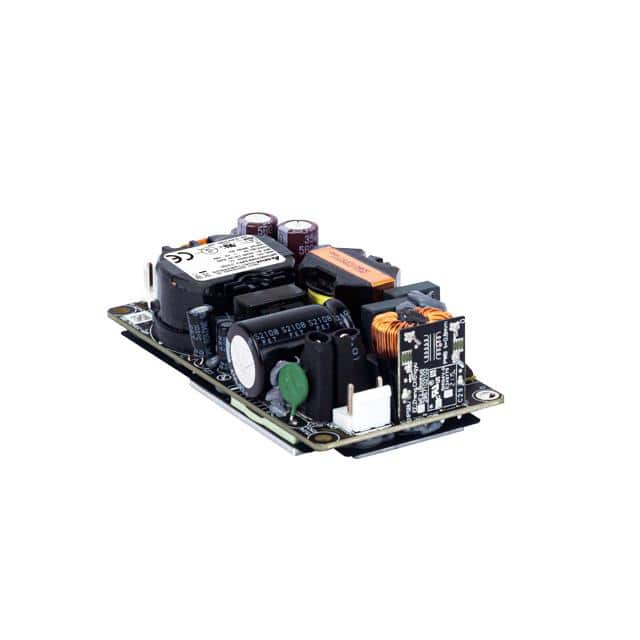

This Delta Electronics MEP-200A48J BNA is an AC/DC converter with a power rating of 200W and an output voltage of 48V. It is designed as an open frame unit for chassis mounting, offering flexibility in system integration.
The converter boasts a high efficiency of 95.4% and features universal input capabilities, making it suitable for a wide range of applications. It also includes features such as 4kV voltage isolation and operates within a temperature range of -30°C to 70°C with derating.
Key specifications include a current output of 4.17A, a single output, and compliance with various safety standards including 60335-1, 60601-1, 60950-1, and 62368-1. The dimensions are 101.6mm in length, 50.8mm in width, and 28.5mm in height.
Applications for this converter include household appliances, ITE (Commercial), and medical equipment, supported by approval agencies such as CB, cURus, and TUV.
200W
95.4%
48V
-30°C to 70°C with derating
CB, cURus, TUV
4 kV
Yes, it is approved for medical applications per standard 60601-1.
