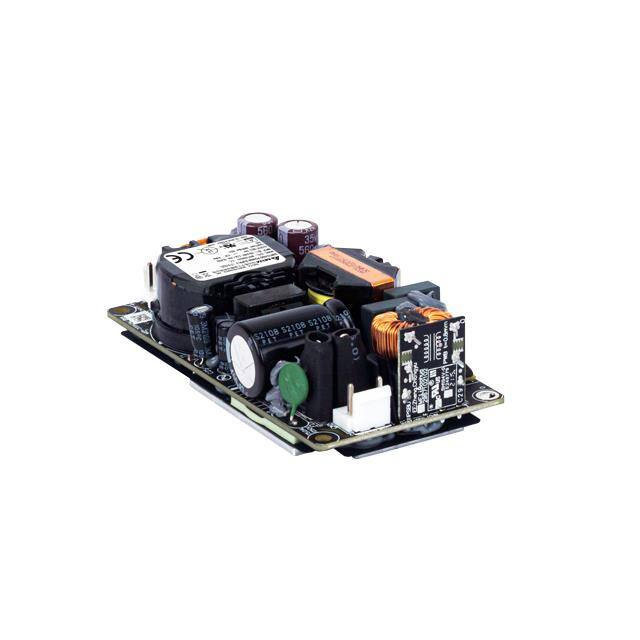

The Delta Electronics MEP-200A12J BNA is a 200W AC/DC power supply converter featuring a 12V output voltage. Designed with an open frame construction, it is suitable for chassis mounting applications.
Key electrical specifications include a maximum current of 16.67A and an impressive efficiency rating of 93.8%. The unit supports universal input and operates within a temperature range of -30°C to 70°C with derating. It also provides 4kV of isolation voltage.
This converter is approved by CB, cURus, and TUV, and complies with standards such as 60335-1, 60601-1, 60950-1, and 62368-1. Its applications include household appliances, ITE (Commercial), and medical equipment.
The physical dimensions are 101.6mm in length, 50.8mm in width, and 28.5mm in height. It features a single output and is RoHS3 compliant with an MSL of 1.
The output voltage is 12V.
The power rating is 200W.
The maximum current output is 16.67A.
This converter supports chassis mount.
The operating temperature range is -30°C to 70°C (With Derating).
Yes, it is RoHS3 Compliant.
