| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

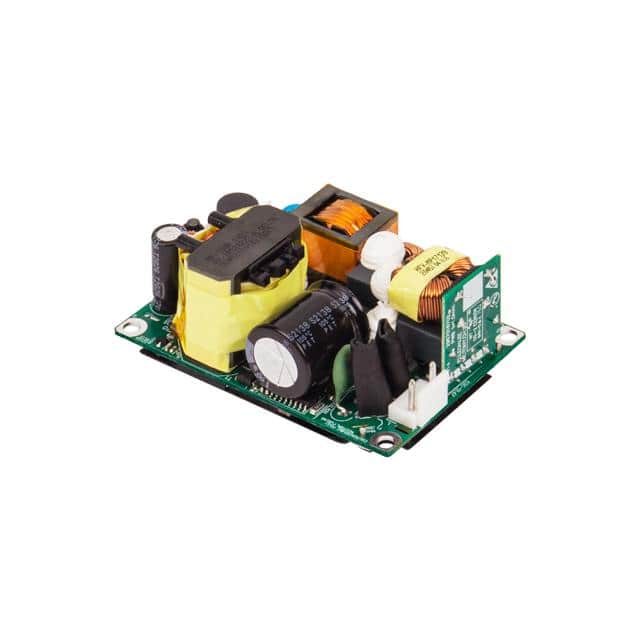

This Delta Electronics MEP-120A24J BNA is an open-frame AC/DC converter with a power rating of 120W and a 24V output. It is designed for chassis mounting and offers a universal input feature.
Key electrical specifications include a 5A current output and an impressive 94% efficiency. The converter operates within a temperature range of -30°C to 70°C, with derating applied. It meets safety standards including 60601-1, 60950-1, and 62368-1, and carries approvals from CE, cURus, TUV, and UKCA.
The dimensions are 76.2mm in length, 50.8mm in width, and 30.5mm in height. This converter is suitable for applications in ITE (Commercial) and Medical sectors, providing reliable power conversion.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The isolation voltage is rated at 4 kV.
The output voltage is not explicitly stated in the provided data, but the product title indicates 24V.
The power rating is 120W.
The operating temperature range is -30°C to 70°C, with derating.
It uses chassis mount.
It is suitable for ITE (Commercial) and Medical applications.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
