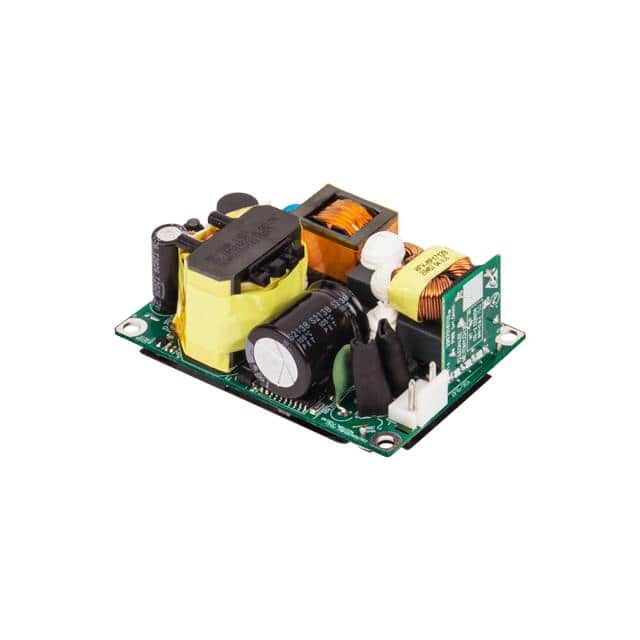

The Delta Electronics MEP-120A18J BNA is an open-frame AC/DC converter with a power rating of 120W and an output voltage of 18V. This unit features a universal input and is designed for chassis mounting.
Key specifications include an efficiency of 94% and an operating temperature range of -30°C to 70°C with derating. The converter is approved by CE, cURus, TUV, and UKCA, and meets standards such as 60601-1, 60950-1, and 62368-1.
With dimensions of 76.2mm x 50.8mm x 30.5mm, this converter is suitable for applications in ITE (Commercial) and Medical fields. It offers a single output and a voltage rating of 4 kV.
The MEP-120A18J BNA is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
The power output is 120W.
The output voltage is 18V.
It uses chassis mount.
The operating temperature range is -30°C to 70°C (With Derating).
The dimensions are 76.2mm x 50.8mm x 30.5mm.
