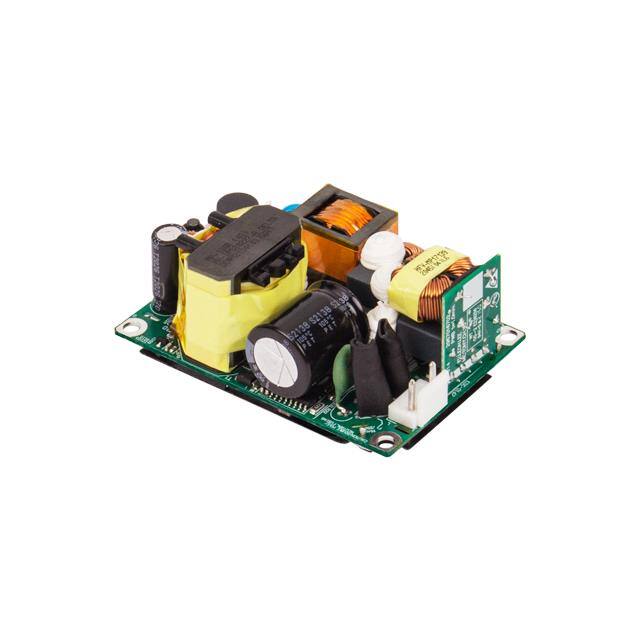

The Delta Electronics MEP-120A15J BNA is an open-frame AC/DC power supply designed for ITE (Commercial) and Medical applications. It delivers a stable 15Vdc output at a maximum current of 8A, providing a total power of 120W.
This converter features a wide universal input voltage range of 90~264Vac, making it suitable for global use. It boasts high efficiency of 93.5% and an isolation voltage of 4kV. The operating temperature range is -30°C to 70°C, with derating applied.
With dimensions of 76.2mm x 50.8mm x 30.5mm, it is designed for chassis mounting. The MEP-120A15J BNA complies with key safety standards including IEC/EN 60601-1, ANSI/AAMI ES 60601-1, IEC/EN 62368-1, UL 62368-1, and IEC 60950-1. It is also Class II certified and features built-in PFC.
The input voltage range is 90 to 264Vac.
The output is 15Vdc at 8 Amps.
The efficiency is 93.5%.
The isolation voltage is 4kV.
The operating temperature range is -30°C to 70°C with derating.
Dimensions are 76.2mm x 50.8mm x 30.5mm (3.00" x 2.00" x 1.20") with open frame chassis mount.
It complies with 60601-1 (medical), 60950-1, and 62368-1 (ITE/AV) standards.
