| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

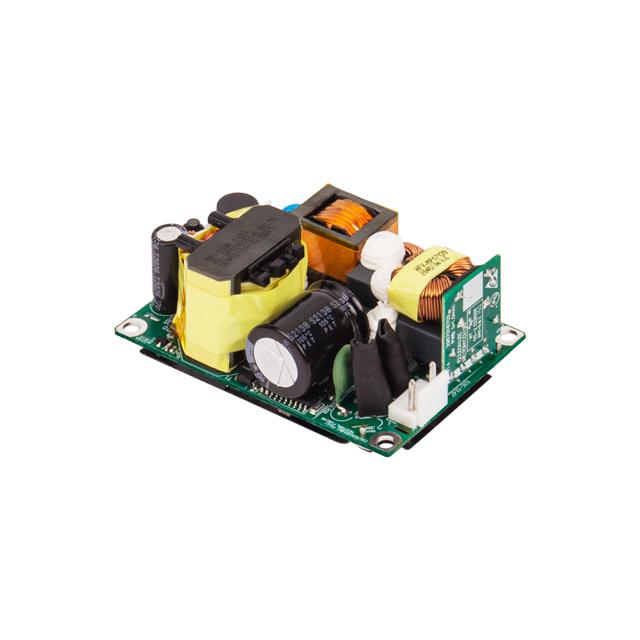

The Delta Electronics MEP-120A12J BNA is an open frame AC DC converter designed for ITE (Commercial) and Medical applications. It operates with a universal input voltage range of 90 to 264 VAC and provides a single output of 12V at 9.5A, delivering a total power of 114W. The converter boasts a high efficiency of 93.5% and features 4 kV isolation.
With dimensions of 76.2mm x 50.8mm x 30.5mm, this chassis mountable unit is suitable for integration into various systems. It meets safety standards including 60601-1, 60950-1, and 62368-1, and is approved by CE, cURus, TUV, and UKCA agencies. The operating temperature range is -30°C to 70°C with derating.
This AC DC converter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 (Unlimited). Its compact size and robust specifications make it a reliable choice for power conversion needs in commercial and medical equipment.
The output voltage is 12V.
The output current is 9.5A.
The maximum power output is 114W.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -30°C to 70°C (With Derating).
The dimensions are 76.2mm L x 50.8mm W x 30.5mm H.
It meets standards 60601-1, 60950-1, and 62368-1.
