| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) |

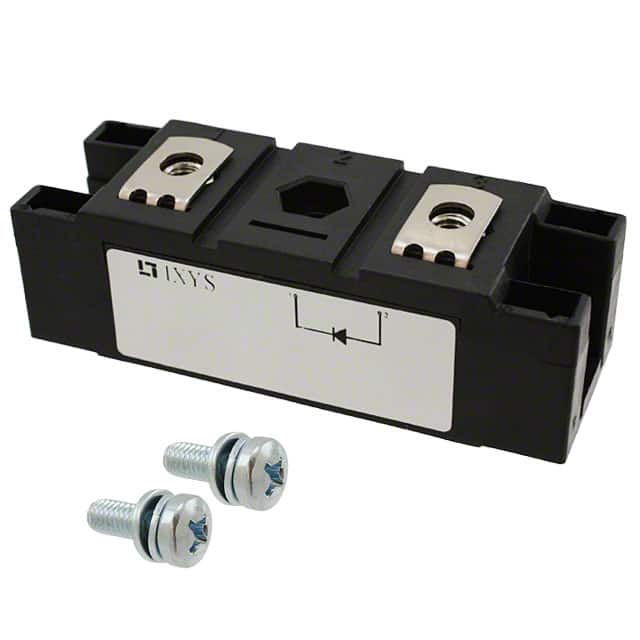

The IXYS MEO450-12DA is a high-power standard recovery diode designed for demanding industrial power conversion applications. It is rated for a maximum repetitive reverse voltage of 1200V and can handle an average rectified forward current of 453A. The diode exhibits a typical forward voltage of 1.96V at 520A forward current, ensuring efficient conduction in high-current circuits.
With a reverse recovery time (trr) of 500ns maximum, this diode is suitable for fast-switching rectifier stages. It is built using standard planar technology and is housed in a robust Y4-M6 package designed for chassis mounting, providing excellent thermal management. The junction operating temperature range spans -40°C to +150°C, allowing reliable operation in harsh environments.
Typical applications include input rectification in AC-DC power supplies, freewheeling diodes in motor drives, and snubber circuits. The device is RoHS3 compliant and REACH unaffected, meeting current environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $121.72 | $121.72 |
| 12+ | $101.25 | $101.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage (Vr) is 1200V DC.
The average rectified forward current (Io) is 453A.
The typical forward voltage (Vf) is 1.96V at a forward current of 520A.
The reverse recovery time (trr) is typically 500ns.
It comes in a Y4-M6 chassis mount package.
The junction operating temperature range is -40°C to +150°C.
The part is indicated as RoHS3 compliant, though this status is unverified and should be confirmed with the manufacturer.
