| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight |

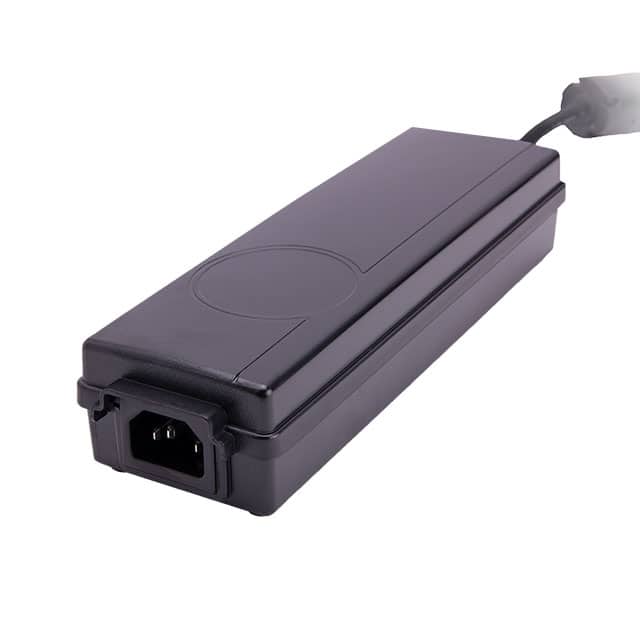

The SL Power Electronics MENB1121A2441F01 is an external AC/DC desktop power adapter with a 120W output power rating. It delivers a stable 24V output voltage and a maximum current of 5A. This adapter meets Level V efficiency standards, minimizing energy waste.
Designed for demanding environments, the MENB1121A2441F01 is specifically suited for medical applications. Its compact desktop form factor (Class I) and robust construction ensure reliable operation. The adapter utilizes an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The cord length is 1.20 meters.
Key specifications include an input voltage range of 100-240 VAC and a low no-load power consumption of 500mW maximum. The operating temperature range is from 0°C to 40°C. Dimensions are 212.4mm x 67.4mm x 44.3mm, and it weighs 725.7g. The product is RoHS compliant and REACH unaffected.
The MENB1121A2441F01 provides a 24V output voltage and a maximum output current of 5A.
The power rating of the MENB1121A2441F01 adapter is 120W.
The operating temperature range for the MENB1121A2441F01 is 0°C to 40°C.
The adapter uses an IEC 320-C14 input connector and a Barrel Plug R/A output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm).
The MENB1121A2441F01 is stated as RoHS Compliant.
