| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Topology | |
| Voltage | |
| Weight | |
| Width |

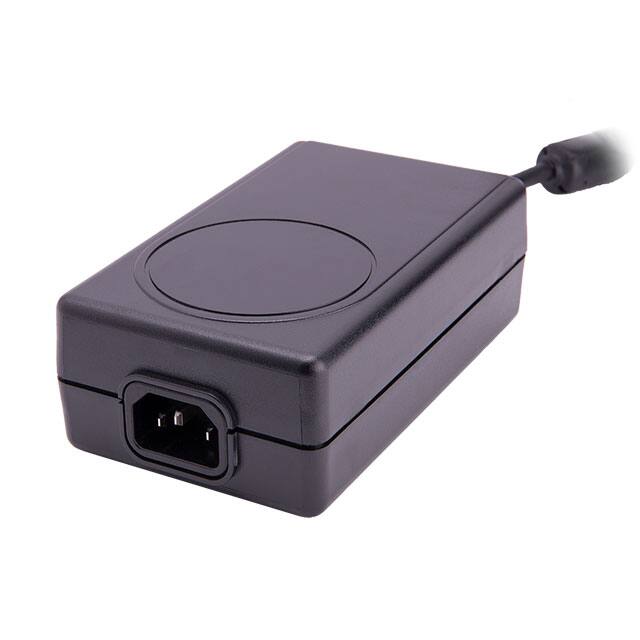

The SL Power Electronics MENB1080A1503F01 is an 80 Watt Series AC/DC desktop adapter designed for universal input (100-240Vac). This model provides a regulated 15V output with low ripple and a maximum power of 78W.
It meets International Efficiency Level V and complies with EISA2007 and CEC standards. The adapter features a durable, impact-resistant polycarbonate enclosure and operates within a temperature range of 0°C to 40°C without derating. Safety and EMC approvals include EN/IEC/CSA/UL60601-1.
The unit has a 1,800mm (70.9") 20AWG 4-conductor cable and a standard barrel plug connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. Its dimensions are 131 x 72 x 43mm, making it suitable for various desktop applications, particularly in the medical field.
Key electrical specifications include a calculated MTBF of over 100,000 hours, hiccup mode for overload and short circuit protection, and a no-load power consumption of less than 0.5W.
The output voltage is 15V.
The adapter has a maximum power output of 78W.
The operating temperature range is 0°C to 40°C.
Yes, it is RoHS3 Compliant.
The case dimensions are 131 x 72 x 43mm.
It uses a Barrel Plug connector with a 2.5mm I.D. x 5.5mm O.D. x 9.5mm size.
It is certified to EN/IEC/CSA/UL60601-1 medical standards.
