| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Topology | |
| Turn On Time | |
| Voltage | |
| Weight | |
| Width |

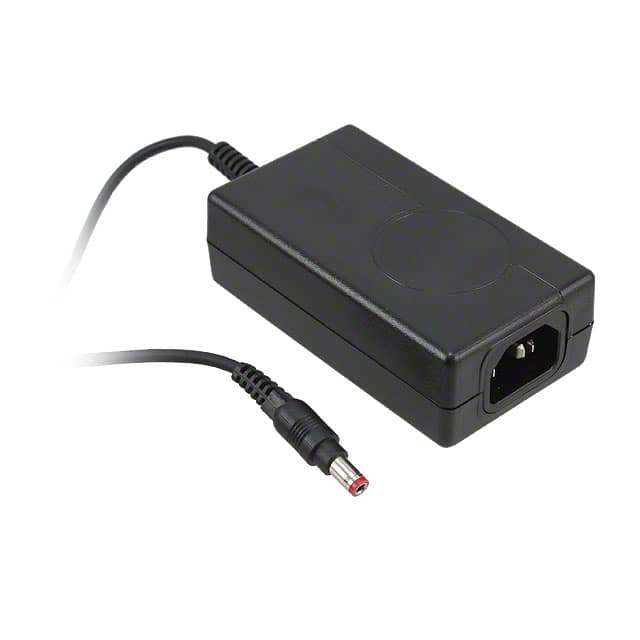

This SL Power Electronics MENB1030A2403F01 is a versatile AC/DC desktop adapter designed for a wide range of applications, including medical use. It operates with a universal input voltage range of 100-240VAC, making it suitable for international use.
The adapter delivers a stable 24V output with a maximum power of 32W. It boasts high efficiency, meeting EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements, ensuring reduced energy consumption. Protection features include overload and short circuit protection in hiccup mode.
Designed with a compact and durable black polycarbonate enclosure, this desktop adapter measures 95.5mm x 54.0mm x 31.0mm. It features a standard 2.5mm I.D. x 5.5mm O.D. barrel plug output connector with a positive center pin and a 1.50m cord. The operating temperature range is 0° to 40°C without derating.
100-240 VAC.
0° to 40°C (typical) with no derating.
EN/IEC/CSA/UL60601-1, 3rd Edition.
2.5mm I.D. x 5.5mm O.D. barrel plug, positive center.
Level VI.
18 ms minimum at 115VAC, 60 ms minimum at 230VAC.
Yes, both overload and short circuit protection are hiccup mode.
