| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Turn On Time | |
| Voltage | |
| Weight | |
| Width |

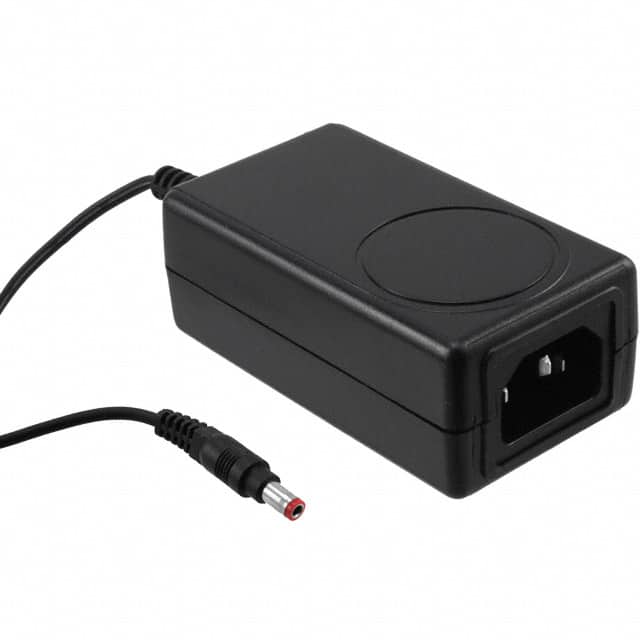

This AC/DC desktop adapter from SL Power Electronics, part number MENB1030A1502F01, delivers a regulated 15V output at up to 2A, providing a total power of 30W. It operates with a universal input voltage range of 100-240 VAC and complies with EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements.
The adapter is designed for medical applications and features a durable polycarbonate enclosure. It includes overload and short circuit protection in a hiccup mode, and operates within a temperature range of 0° to 40°C without derating. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug connector with a positive center pin.
Safety certifications include CE and cURus, adhering to EN/IEC/CSA/UL60601-1, 3rd Edition standards. The unit utilizes a fixed-frequency flyback switching topology and offers low ripple and noise (1% pk-pk max.). It has a low no-load power consumption of 100mW maximum.
100-240 VAC.
15V at 2A (30W).
-20°C to 40°C.
EN/IEC/CSA/UL60601-1, 3rd Edition.
Level V.
Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
100mW maximum.
