| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Cable | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| Storage Temperature | |
| Topology | |
| Turn On Time | |
| Voltage | |
| Weight | |
| Width |

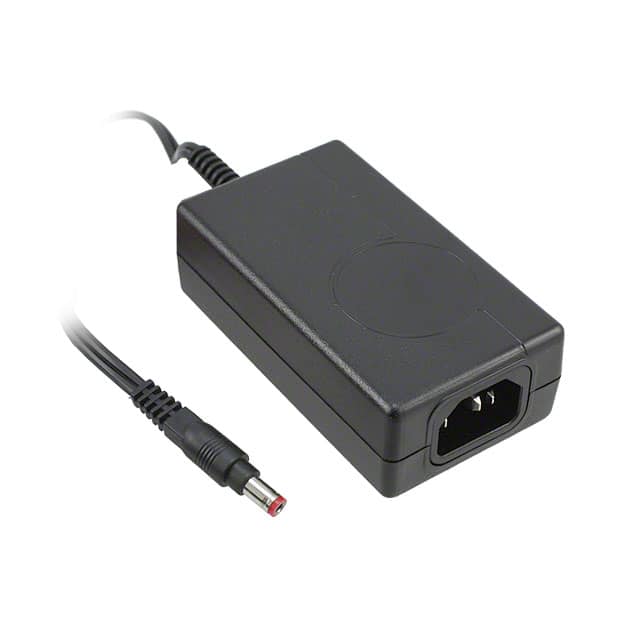

The SL Power Electronics MENB1030A0903F01 is a versatile 27W AC/DC desktop power adapter designed for universal input (100-240VAC). It provides a regulated 9V output with low ripple and noise, ensuring stable power delivery.
This adapter meets EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements, offering efficient power conversion. It is certified to EN/IEC/CSA/UL60601-1, 3rd Edition safety standards, making it suitable for medical applications.
The unit features a compact, impact-resistant polycarbonate enclosure with dimensions of 95.5mm x 54.0mm x 31.0mm. It includes overload and short circuit protection in hiccup mode and operates within a temperature range of 0° to 40°C without derating. The output is delivered via a standard 2.5mm barrel plug connector with a positive center pin.
100-240 VAC.
9V at 27W.
EN/IEC/CSA/UL60601-1, 3rd Edition.
0°C to 40°C.
2.5mm barrel plug with positive center.
Level VI.
Hiccup mode overload and short circuit protection.
