| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Relative Humidity | |
| SVHC Present | |
| Storage Temperature | |
| Topology | |
| Turn On Time | |
| Voltage | |
| Width |

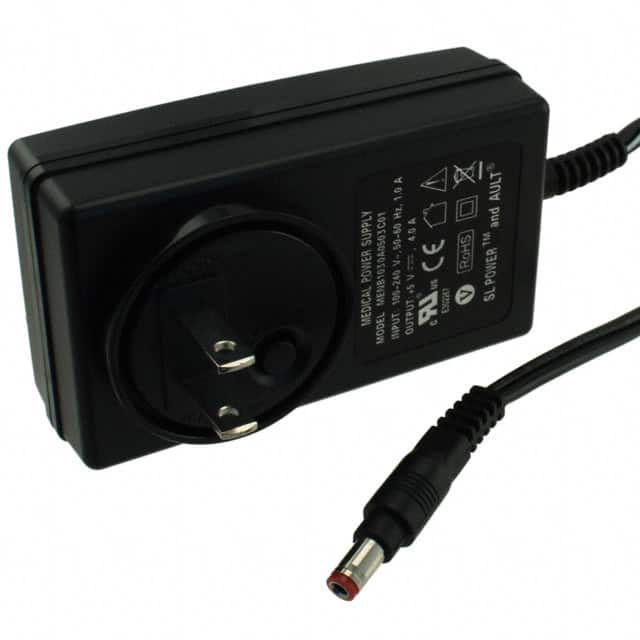

The SL Power Electronics MENB1030A0503C01 is a versatile AC/DC wall mount adapter delivering 20W of power with a stable 5V output. Designed for universal input (100-240VAC), it meets EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements, ensuring high efficiency.
This adapter features a compact case size of 95 x 54 x 31mm and a durable black 94V0 polycarbonate enclosure. It includes a 2.5mm barrel output connector with positive center polarization and a 1.50m cord length. The operating temperature range is 0° to 40°C without derating.
Safety and compliance are paramount, with certifications including EN/IEC/CSA/UL60601-1, 3rd Edition, and CE, cURus approvals. It also meets stringent EMC standards such as EN55011 Class B and FCC Part 15 Class B for both conducted and radiated emissions. The adapter offers hiccup mode protection for overload and short circuits.
Ideal for medical applications, this adapter provides regulated output with low ripple and noise, ensuring reliable performance. Its no-load power consumption is a maximum of 100mW.
The adapter provides a 5V output at 20W.
The adapter accepts a universal input of 100-240 VAC at 47-63 Hz.
It meets Level VI efficiency with 100mW maximum no-load power consumption and complies with EISA2007, CEC Efficiency Level V, and EU (EC) No. 278/2009 Phase II requirements.
The operating temperature range is 0° to 40°C with no derating.
Overload and short circuit protection operate in hiccup mode, and the input is protected by an internal 3.15A primary fuse.
The output uses a 2.5mm barrel connector (Ault #3) with center contact positive.
It is a wall mount Class II adapter in a black 94V0 polycarbonate case measuring 95.5 x 54.0 x 31.0mm.
