Mfr Part #:

MENB1030A0502Q01

Mfr Name: SL Power Electronics Manufacture of Condor/Ault Brands

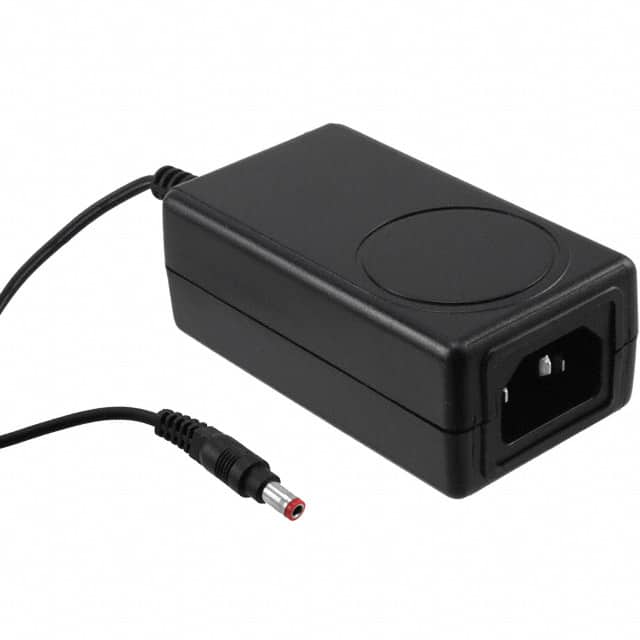

The SL Power Electronics MENB1030A0502Q01 is a 20W AC/DC desktop adapter providing a 5V output at 4A. It meets Level V efficiency standards and is designed for medical applications.

Stock on Request

MENB1030A0502Q01 Description

Short technical summary and product information.

The SL Power Electronics MENB1030A0502Q01 is an AC/DC external desktop adapter designed for medical applications. It operates with a universal input voltage range of 100-240 VAC and delivers a regulated 5V output at a maximum current of 4A, providing up to 20W of power.

This adapter meets EISA2007, CEC Efficiency Level V, and EU(EC) No. 278/2009 Phase II requirements, ensuring efficient power conversion with a low no-load power consumption of 100mW maximum. It features Hiccup Mode for overload and short circuit protection, and maintains low ripple and noise at 1% pk-pk maximum.

The unit is certified to EN/IEC/CSA/UL60601-1, 3rd Edition safety standards. It comes with an IEC 320-C18 input connector and a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector with a 1.50m cord. The dimensions are 95.5mm x 54.0mm x 31.0mm, and it weighs 200g. The operating temperature range is 0° to 40°C.

MENB1030A0502Q01 Quick Information

Product Type: AC DC Desktop, Wall Adapter

Series: Universal 30 Watt Series

Canonical Name: SL Power Electronics Manufacture of Condor/Ault Brands MENB1030A0502Q01 AC/DC Desktop Adapter

Subcategory: AC DC External Desktop Adapter

MENB1030A0502Q01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MENB1030A0502Q01 Features

Provides 5V output at 4A for 20W power.
Universal 100-240VAC input voltage.
Meets Level V efficiency standards.
Designed for medical applications.
Features Hiccup mode protection.

MENB1030A0502Q01 Applications

Suitable for medical diagnostic equipment.
Used in portable patient monitoring devices.
Ideal for test and measurement instruments.
Powers battery charging systems in medical devices.

MENB1030A0502Q01 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage and frequency range?

100-240 VAC, 47-63 Hz.

What are the physical dimensions of the adapter?

95.5mm x 54.0mm x 31.0mm (3.76 in x 2.13 in x 1.22 in).

What is the operating temperature range?

0°C to 40°C, no derating.

What are the output specifications?

5V DC, 4A, 20W.

What safety standards does it meet?

EN/IEC/CSA/UL60601-1, 3rd Edition.

What efficiency level does it meet?

Level V, compliant with EISA2007, CEC, and EU Phase II.

What protection features does it have?

Overload and short circuit protection in hiccup mode.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	SL Power Electronics Manufacture of Condor/Ault Brands
Applications	Medical
Approval Agency	CE, cURus
Cord Length	1.50m (59")
Current	4A
Efficiency	Level V
Form	Desktop (Class II)
Height	31.0mm (1.22")
Input Connector	IEC 320-C18
Input Frequency	47-63 Hz
Input Type	Cord (Sold Separately)
Input Voltage	100-240 VAC
Length	95.5mm (3.76")
No Load Power Consumption	100mW (Max)
Operating Temperature	0° to 40 °C
Output Connector	Barrel Plug \| 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Overload Protection	Hiccup Mode
Polarization	Positive Center
Power (Watts)	20 W
Region Utilized	International
Relative Humidity	5% to 95%
Storage Temperature	-30 to +85 °C
Topology	Switching – Fixed Frequency Flyback
Turn On Time	2 seconds, max.
Voltage	5V
Weight	200g (0.441 lb)
Width	54.0mm (2.13")
