Mfr Part #:

MENB1010A0503B01

Mfr Name: SL Power Electronics Manufacture of Condor/Ault Brands

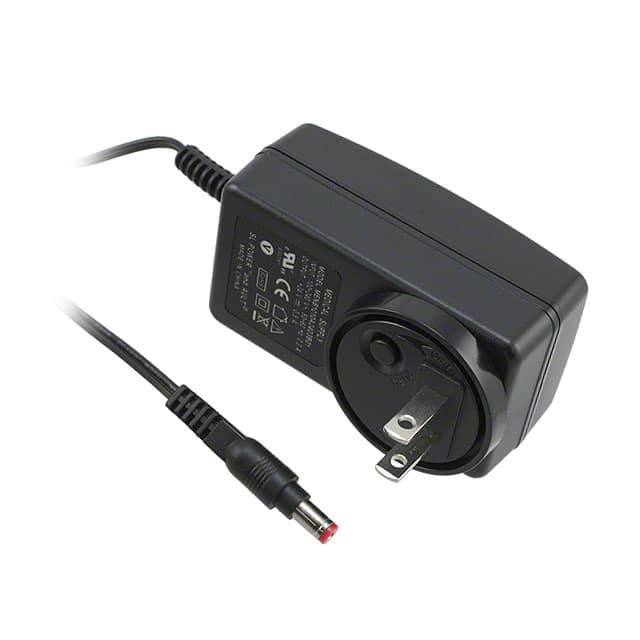

The SL Power MENB1010A0503B01 is an AC DC Desktop, Wall Adapter providing 5V at 2A with a 10W output. It features Level V efficiency and a Class II wall mount form factor.

Stock on Request

MENB1010A0503B01 Description

Short technical summary and product information.

The SL Power MENB1010A0503B01 is an AC DC Desktop, Wall Adapter designed for reliable power conversion. It delivers a stable 5V output with a maximum current of 2A, providing a total power of 10W. This adapter meets Level V efficiency standards, ensuring energy savings.

Designed for versatility, it features a Wall Mount (Class II) form factor and a positive center polarization. The input connector is NEMA 1-15P with multi-blade compatibility, while the output utilizes a standard barrel plug (2.5mm I.D. x 5.5mm O.D.). Its compact dimensions are 84.0mm x 47.0mm x 32.0mm, making it suitable for various applications.

This adapter is approved by CB, CE, CSA, and UL, indicating compliance with international safety standards. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 300mW maximum. The product is suitable for medical applications.

MENB1010A0503B01 Quick Information

Product Type: AC DC Desktop, Wall Adapter

Canonical Name: AC DC Desktop, Wall Adapter

Subcategory: AC DC Desktop, Wall Adapter

MENB1010A0503B01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MENB1010A0503B01 Features

Provides 5V output at 2A.
Delivers a total of 10W power.
Meets Level V efficiency standards.
Features a Class II wall mount form factor.
Approved by CB, CE, CSA, and UL.

MENB1010A0503B01 Applications

Used in medical monitoring equipment requiring 5V power.
Ideal for portable diagnostic devices.
Suitable for laboratory instruments needing isolated DC supply.
Powers patient monitoring systems in North America.

MENB1010A0503B01 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage of the MENB1010A0503B01?

What is the output current rating?

What is the operating temperature range?

0°C to 40°C

What type of output connector does it use?

Barrel plug with 2.5mm I.D. x 5.5mm O.D. x 9.5mm, positive center

What input connector is required?

NEMA 1-15P fixed blade (multi-blade sold separately)

What safety approvals does it have?

CB, CE, CSA, UL

What is the form factor?

Wall mount (Class II)

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	SL Power Electronics Manufacture of Condor/Ault Brands
Applications	Medical
Approval Agency	CB, CE, CSA, UL
Automotive Grade	No
Cord Length	59" (1.50m)
Current	2A
Efficiency	Level V
Form	Wall Mount (Class II)
Height	32.0mm (1.26")
Industrial Grade	No
Input Connector	NEMA 1-15P, Multi-Blade (Sold Separately)
Input Type	Fixed Blade, Multi-Blade (Sold Separately)
Length	84.0mm (3.30")
Medical Grade	Yes
Military Grade	No
Mounting Type	Wall Mount
No Load Power Consumption	300mW (Max)
Operating Temperature	0°C ~ 40°C
Output Connector	Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Package / Case	Box
Polarization	Positive Center
Power (Watts)	10 W
Region Utilized	North America
SVHC Present	Not Present
Tape & Reel	No
Voltage	5V
Width	47.0mm (1.85")
