Mfr Part #:

MEM2075-00-140-01-A

Mfr Name: GCT

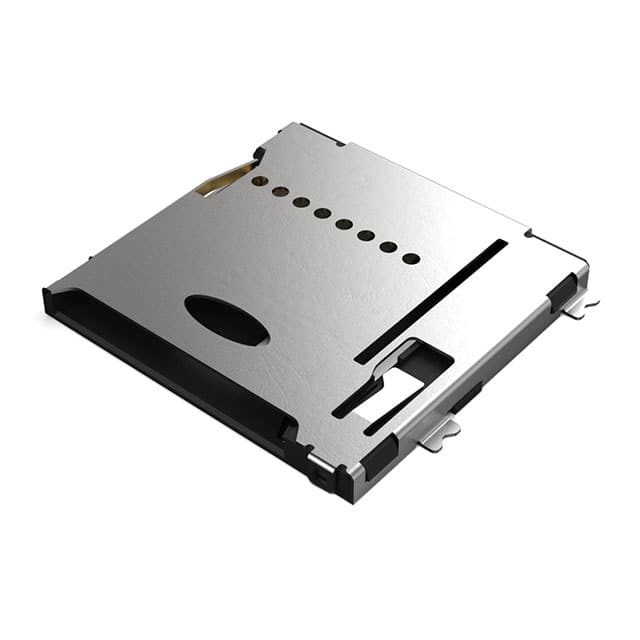

A microSD memory card connector with push-push insertion/removal, surface mount right angle mounting, and a 1.40mm profile. Rated for 0.5A per pin and 30V AC, with gold-plated contacts.

✓ Total Stock: 150 pcs

$ Price Range: $1.06 - $2.04

MEM2075-00-140-01-A Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	148 pcs On Request	148 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Trace Tec ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MEM2075-00-140-01-A Description

Short technical summary and product information.

The MEM2075-00-140-01-A is a microSD card connector from GCT (Global Connector Technology) featuring a push-push insertion and removal mechanism. It is designed for surface mount right angle mounting, with a height above board of 0.055 inches (1.40mm), making it suitable for compact portable devices.

The connector provides 9 positions (8 data + 1 card detect switch) and includes a normally open switch for card detection. Electrical ratings are 0.5A DC per pin maximum and 30V AC (RMS) maximum. The contacts are finished with 1.00 µinch of gold for reliable low-resistance connections.

Mechanical durability is rated for 5000 insertion/removal cycles. The operating temperature range is -25°C to +85°C. It also features a board guide for easier alignment during assembly. The connector is claimed RoHS3 compliant, REACH unaffected, and MSL level 1 (unlimited).

MEM2075-00-140-01-A Quick Information

Product Type: Memory Card Connector

Series: MEM2075

Canonical Name: MicroSD Card Connector, Push-Push, SMT, 1.40mm Profile

Subcategory: Push-Push Type

MEM2075-00-140-01-A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MEM2075-00-140-01-A Estimated Pricing

Qty	Low	High
1+	$2.04	$2.04
10+	$1.78	$1.78
25+	$1.71	$1.71
100+	$1.59	$1.59
250+	$1.44	$1.44
500+	$1.33	$1.33
1,000+	$1.18	$1.18
2,000+	$1.10	$1.10
5,000+	$1.06	$1.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

MEM2075-00-140-01-A Features

Push-push insertion and removal mechanism.
Surface mount right angle mounting.
Gold-plated contacts for reliable connectivity.
Rated for 0.5A per pin and 30V AC.
Durable 5000 cycle mating life.

MEM2075-00-140-01-A Applications

Used in portable devices for microSD card connection.
Suitable for consumer electronics memory expansion.
Ideal for space-constrained designs with 1.40mm profile.
Integrates normally open switch for card detection.
Compliant with RoHS and REACH standards.

MEM2075-00-140-01-A FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

The connector has 9 positions (8 + 1 for card detect).

What is the current rating?

0.5A DC per pin maximum.

What is the voltage rating?

30V AC (RMS) maximum.

What is the mounting type?

Surface Mount, Right Angle.

What is the operating temperature range?

-25°C to +85°C.

What is the durability rating?

5000 insertion/removal cycles.

Does this connector have a card detection switch?

Yes, it includes a normally open switch as part of the features.

Category	PC Card Sockets
Manufacturer Name	GCT
Card Type	Secure Digital - microSD™
Connector Type	Connector
Contact Finish	Gold
Contact Finish Thickness	1.00µin (0.025µm)
Current Rating	0.5A DC per pin
Durability	5000 cycles
Features	Board Guide, Switch
Height Above Board	0.055" (1.40mm)
Insertion, Removal Method	Push In, Push Out
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle
Number of Positions	9 (8 + 1)
Operating Temperature Range	-25°C to +85°C
Tape & Reel	Yes
Termination Style	Surface Mount
Voltage Rating	30V AC(RMS)
