| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Current Rating | |
| Durability | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Insertion, Removal Method | |
| Insulation Resistance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Pitch | |
| Shell Material | |
| Shell Plating | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

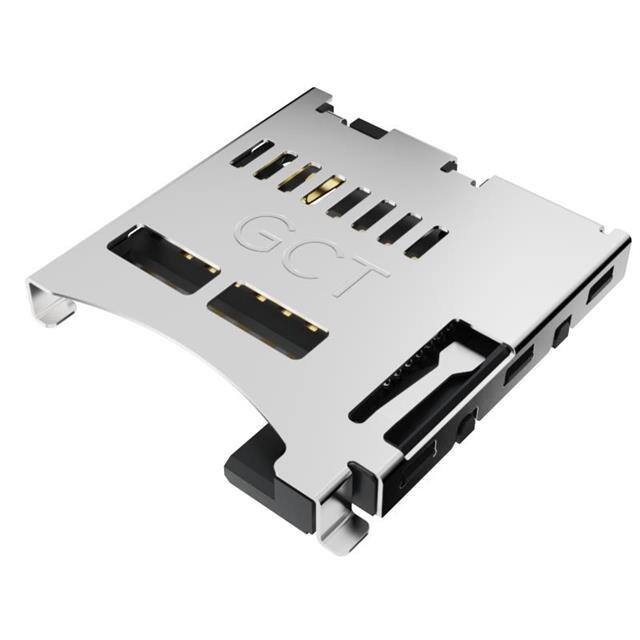

The GCT MEM2052-00-195-00-A is a microSD card connector designed for surface mount, right angle mounting. It features a push-push insertion/removal mechanism with a normally open card detect switch. The connector has 9 positions (8 data + 1 card detect) with a pitch of 1.10 mm. It is rated for a maximum current of 0.5 A and voltage of 10 V AC. Contact resistance is 100 mΩ max, insulation resistance is 1000 MΩ min at 500 V DC, and dielectric withstand voltage is 500 V AC. The operating temperature range is -40°C to +85°C, with a durability of 10,000 cycles. The housing is made of LCP UL94V-0 black, shell of stainless steel, and terminals of phosphor bronze with gold flash plating. The product is supplied in tape and reel packaging with a standard quantity of 1000 pieces. This connector is suitable for portable devices requiring a reliable microSD card interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 10+ | $1.05 | $1.05 |
| 25+ | $1.01 | $1.01 |
| 100+ | $0.95 | $0.95 |
| 250+ | $0.86 | $0.86 |
| 500+ | $0.77 | $0.77 |
| 1,000+ | $0.69 | $0.69 |
| 2,000+ | $0.65 | $0.65 |
| 5,000+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 (8 data + 1 card detect).
1.10 mm.
0.5 A maximum.
10 V AC maximum.
Surface Mount, Right Angle.
-40°C to +85°C.
10,000 cycles minimum.
